Optyma Plus Unit - Filter Drier DML166 - DML166

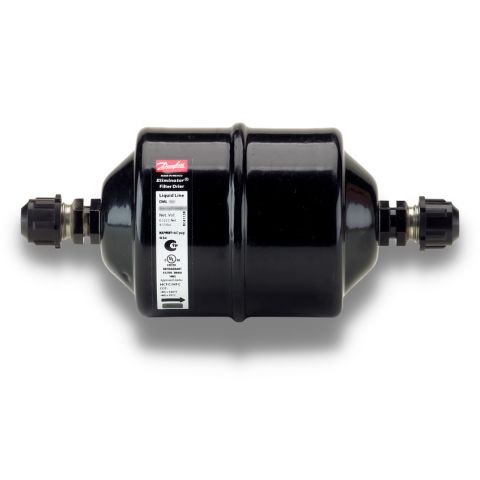

Danfoss ELIMINATOR® Hermetic Filter Drier - Type DML

All ELIMINATOR® driers have a solid core with binding material held to an absolute minimum.Type DML driers have a core composition of 100% Molecular Sieve.

ELIMINATOR® type DML driers are designed for applications requiring the highest moisture capacity.

Features

The Core type DML

• 100% 3Å Molecular Sieve core
• High drying capacity minimizing the risk of acid formation (hydrolysis)
• Recommended for use with R134a, R404A, R32,R410A, R407C, R23, R600, R600a,R1234yf, R1234ze, R407f, R290, R452A,R444B, R449A, R448A and R450A refrigerants
• Will not deplete oil additives

The Shell

• PED approved for PS 46 bar
• Available with flare and solder (pure copper) connections
• Corrosion resistant powder-painted finish
• Allows installation with any orientation provided the arrow is in the flow direction
• Available in sizes 1.5 – 75 cubic inches

The Filter

• 25 μm (0.001 in.) filter provides high retention with minimal pressure drop
• Thermally stable up to 120°C

A: 110mm A1: 55mm A2: 55mm L: 182mm D1: 80mm D2: 76mm
