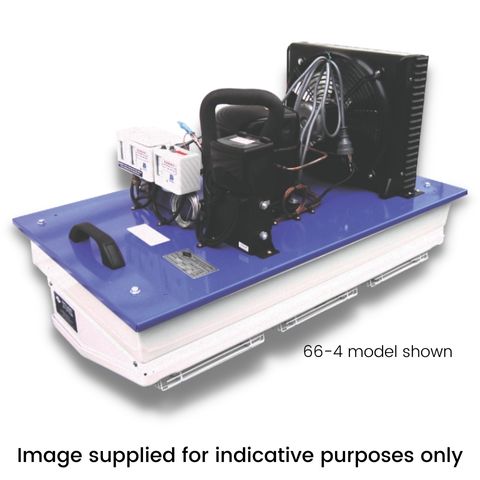

Drop-in Unit - Low Profile - MT R404A - 1600W @ 6.0KTD - 67/4LPE

Drop-in Unit - Low Profile - MT R404A - 1600W @ 6.0KTD

Part Number: 67/4LPE

Drop-in Unit - Low Profile - MT R404A - 1600W @ 6.0KTD

Part Number: 67/4LPE

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EIDIS Packaged Refrigeration Units

    Features & Benefits

    • Both heat exchange coils use rifle bore tubing
    • Accurate metal pressing by C.N.C Turret
    • Compact construction minimising freight cost
    • Bench tested before packaging
    • Each system has an installation instruction sheet, a unit to coldroom sealing strip, electronic componentry useage instructions where required and a drawing showing cut out dimensions and positioning
    • Continual improvement in construction and efficiency
    • Use of proven componentry and controls from the world's leading manufacturers - readily available off the shelf components
    • Simplicity of design facilitating on-site service, particularly in remote locations
    • Easy installation
    • No skilled personnel needed on site
    • Just place in a prepared hole
    • Covers available for all models on request
    • Special units to customer requirements
    • Standard power requirement 220/240 volt 50/HZ
    • Units are provided with 3m electrical cable and 3 pin plug
    • Reliable, safe operation
    • Controls of appropriate design, mechanical thermostats unaffected by voltage spikes
    • Drop-In and Slide-In models have cross ambient temperature controls factory set 2° c room temperature
    • Dual pressure control with auto reset on high cut out to protect against condenser airflow restriction
    • Optional electronic digital controls can be supplied
    • Vibration free balanced external rotor fans
    • Baseplate powder coated
    • Moulded white a.b.s insulated inner panel
    • Evaporator casing, white powder coated aluminium
    • Units are ready to install straight from the box, no technician necessary
  • BrandEidis
    Compressor Model6222GK
    Compressor Nominal H/P1
    Condenser Fan (Dia.)1 x 300mm
    Evap. KTD6.0
    Evaporator Fan (Dia.)3 x 178mm
    Low ProfileYes
    Packaged Dimensions (mm)L: 900 W: 500 H: 800
    Standard Power Requirement220/240 volt 50/HZ
    Temperature RangeMedium
    Watts Capacity @ +2°C Room Temp.1600

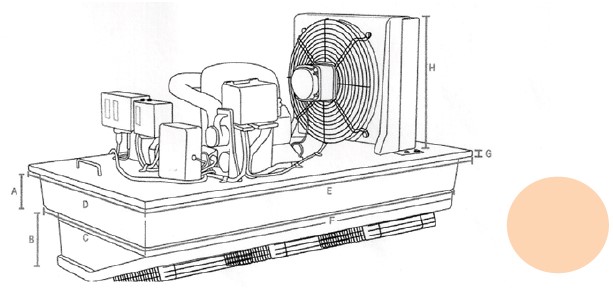

  • A: 80mm B: 140mm C: 395mm D: 500mm E: 875mm F: 840mm G: 16mm H: 380mm

    Drop-in Unit - Low Profile - MT R404A - 1600W @ 6.0KTD
