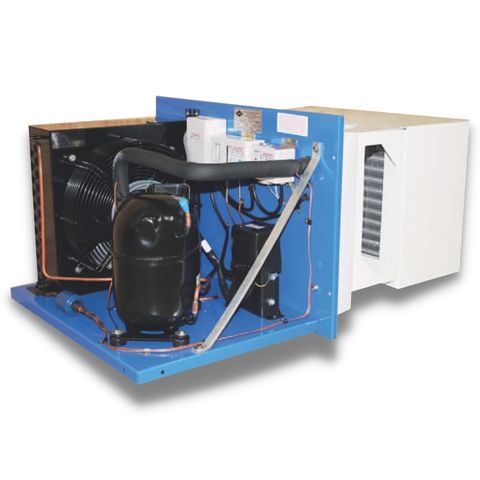

Slide-in Unit - MT R404A - 1300W @ 5.0KTD - 66/4SIE
Slide-in Unit - MT R404A - 1300W @ 5.0KTD
Part Number: 66/4SIESlide-in Unit - MT R404A - 1300W @ 5.0KTD
Part Number: 66/4SIESign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
EIDIS Packaged Refrigeration Units
Features & Benefits
- Both heat exchange coils use rifle bore tubing
- Accurate metal pressing by C.N.C Turret
- Compact construction minimising freight cost
- Bench tested before packaging
- Each system has an installation instruction sheet, a unit to coldroom sealing strip, electronic componentry useage instructions where required and a drawing showing cut out dimensions and positioning
- Continual improvement in construction and efficiency
- Use of proven componentry and controls from the world's leading manufacturers - readily available off the shelf components
- Simplicity of design facilitating on-site service, particularly in remote locations
- Easy installation
- No skilled personnel needed on site
- Just place in a prepared hole
- Covers available for all models on request
- Special units to customer requirements
- Standard power requirement 220/240 volt 50/HZ
- Units are provided with 3m electrical cable and 3 pin plug
- Reliable, safe operation
- Controls of appropriate design, mechanical thermostats unaffected by voltage spikes
- Drop-In and Slide-In models have cross ambient temperature controls factory set 2° c room temperature
- Dual pressure control with auto reset on high cut out to protect against condenser airflow restriction
- Optional electronic digital controls can be supplied
- Vibration free balanced external rotor fans
- Baseplate powder coated
- Moulded white a.b.s insulated inner panel
- Evaporator casing, white powder coated aluminium
- Units are ready to install straight from the box, no technician necessary
Brand | Eidis |
Compressor Model | 6213GK |
Compressor Nominal H/P | 1/2 |
Condenser Fan (Dia.) | 1 x 300mm |
Evap. KTD | 5.0 |
Evaporator Fan (Dia.) | 1 x 300mm |
Packaged Dimensions (mm) | L: 1070 W: 700 H: 510 |
Refrigerant | R404A |
Standard Power Requirement | 220/240 volt 50/HZ |
Temperature Range | Medium |
Watts Capacity @ +2°C Room Temp. | 1300 |
Weight | 58kg |
A: 370mm B: 390mm C: 605mm D: 385mm E: 690mm F: 430mm G: 460mm H: 600mm
