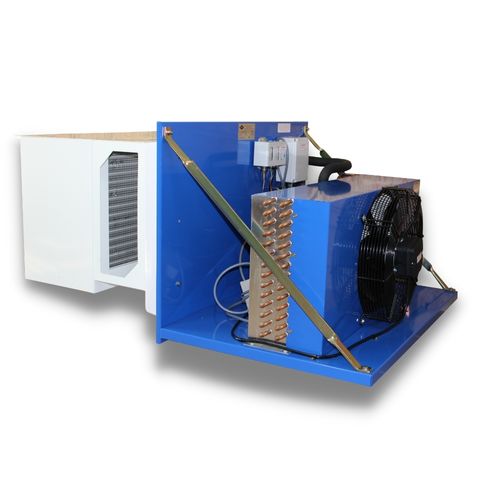

Slide-in Unit - MT R404A - 3220W @ 6.0KTD - 1212/4SIE

EIDIS Packaged Refrigeration Units

Features & Benefits

• Both heat exchange coils use rifle bore tubing
• Accurate metal pressing by C.N.C Turret
• Compact construction minimising freight cost
• Bench tested before packaging
• Each system has an installation instruction sheet, a unit to coldroom sealing strip, electronic componentry useage instructions where required and a drawing showing cut out dimensions and positioning
• Continual improvement in construction and efficiency
• Use of proven componentry and controls from the world's leading manufacturers - readily available off the shelf components
• Simplicity of design facilitating on-site service, particularly in remote locations
• Easy installation
• No skilled personnel needed on site
• Just place in a prepared hole
• Covers available for all models on request
• Special units to customer requirements
• Standard power requirement 220/240 volt 50/HZ
• Units are provided with 3m electrical cable and 3 pin plug
• Reliable, safe operation
• Controls of appropriate design, mechanical thermostats unaffected by voltage spikes
• Drop-In and Slide-In models have cross ambient temperature controls factory set 2° c room temperature
• Dual pressure control with auto reset on high cut out to protect against condenser airflow restriction
• Optional electronic digital controls can be supplied
• Vibration free balanced external rotor fans
• Baseplate powder coated
• Moulded white a.b.s insulated inner panel
• Evaporator casing, white powder coated aluminium
• Units are ready to install straight from the box, no technician necessary

A: 450mm B: 480mm C: 760mm D: 493mm E: 890mm F: 590mm G: 590mm H: 890mm
