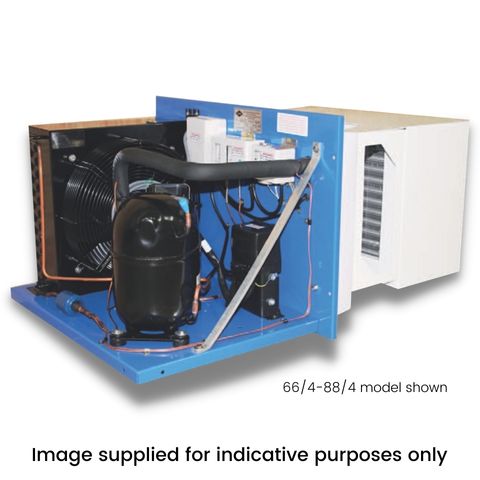

Slide-in Unit - MT R404A - 4200W @ 5.0KTD - 2012/4SIE

Slide-in Unit - MT R404A - 4200W @ 5.0KTD

Part Number: 2012/4SIE

Slide-in Unit - MT R404A - 4200W @ 5.0KTD

Part Number: 2012/4SIE

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EIDIS Packaged Refrigeration Units

    Features & Benefits

    • Both heat exchange coils use rifle bore tubing
    • Accurate metal pressing by C.N.C Turret
    • Compact construction minimising freight cost
    • Bench tested before packaging
    • Each system has an installation instruction sheet, a unit to coldroom sealing strip, electronic componentry useage instructions where required and a drawing showing cut out dimensions and positioning
    • Continual improvement in construction and efficiency
    • Use of proven componentry and controls from the world's leading manufacturers - readily available off the shelf components
    • Simplicity of design facilitating on-site service, particularly in remote locations
    • Easy installation
    • No skilled personnel needed on site
    • Just place in a prepared hole
    • Covers available for all models on request
    • Special units to customer requirements
    • Standard power requirement 220/240 volt 50/HZ
    • Units are provided with 3m electrical cable and 3 pin plug
    • Reliable, safe operation
    • Controls of appropriate design, mechanical thermostats unaffected by voltage spikes
    • Drop-In and Slide-In models have cross ambient temperature controls factory set 2° c room temperature
    • Dual pressure control with auto reset on high cut out to protect against condenser airflow restriction
    • Optional electronic digital controls can be supplied
    • Vibration free balanced external rotor fans
    • Baseplate powder coated
    • Moulded white a.b.s insulated inner panel
    • Evaporator casing, white powder coated aluminium
    • Units are ready to install straight from the box, no technician necessary
  • BrandEidis
    Compressor ModelCS14
    Compressor Nominal H/P2-1/4
    Condenser Fan (Dia.)1 x 400mm
    Evap. KTD5.0
    Evaporator Fan (Dia.)2 x 300mm
    Packaged Dimensions (mm)L: 1500 W: 1300 H: 760
    Standard Power Requirement220/240 volt 50/HZ
    Temperature RangeMedium
    Watts Capacity @ +2°C Room Temp.4200

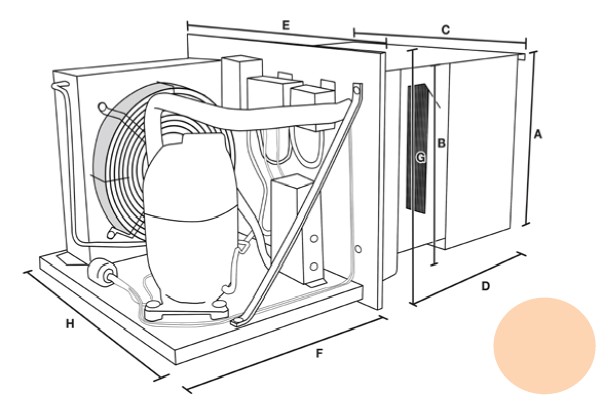

  • A: 450mm B: 490mm C: 1215mm D: 730mm E: 1285mm F: 710mm G: 600mm H: 1225mm
