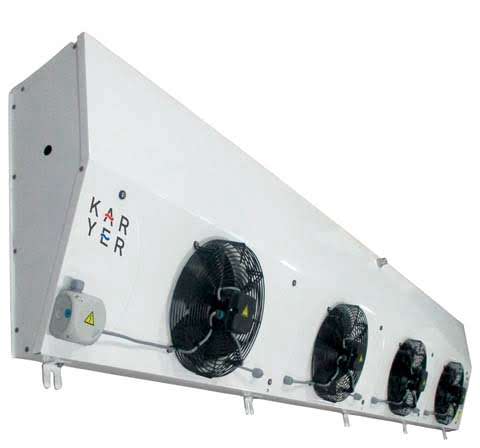

Karyer Low Temp Angled Evaporator - 4 x 300mm Fan - EGL049E4300

Karyer Low Temp Angled Evaporator - 4 x 300mm Fan

Part Number: EGL049E4300

Karyer Low Temp Angled Evaporator - 4 x 300mm Fan

Part Number: EGL049E4300
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EG Series Evaporators

    The Karyer EG series evaporators are specially designed for a wide variety of smaller commercial refrigeration low and medium temperature applications such as coolrooms, freezer rooms, walk-in rooms and display cabinets etc specifically where space is a premium.

    The EG series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The 300mm diameter single-phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EG series features:

    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Feet are designed for flush mounting
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Main pan/drip tray is hinged for easy access to the coil & TX valve
    • Large side access panels are easily removed to enable access for welding during installation & service
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire heater safety thermostats (5.0amp) - low temp models only
    • High quality single phase 300mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection box(s)
  • Evaporator Specifications
    Weight Unpacked46 kg
    Weight Packed75 kg
    Suction Connection1-1/8 "
    Liquid Connection5/8 "
    Tube Volume5.2 dm³
    Air Flow
    Air Flow5534 m³/h
    Air Throw - STD Fan16.2 m
    Fan Motors
    Voltage230 / 1 / 50 Hz
    Quantity4
    Diameter300 mm
    Total Watts250 watts
    Total Amps1.12 amps
    Defrost Heaters
    Voltage230 / 1 / 50 Hz
    Total Watts5760 watts
    Total Amps25 amps
  • ebm Fan Motors - Original ModelS4E300AS72A2
    ebm Fan Motors - Alternate ModelS4E300AS7280
    Defrost Safety Termination ThermostatD-90653
    Coil Heater SetD-91582
    Pan Heater SetD-91582
  • Karyer_EG_D24_2023-05-14

    Units Dimensions (mm)
    A2233
    B685
    C370
    E1955
    E1977.5
    F630
    DrainG1" Thread (25mm ID Ø)
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5
    4614493249865202528054066408

    Note:

    Capacities bases on Fin Series 7
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5
    4337.164636.084686.844889.884963.25081.646023.52

    Note:

    Capacities bases on Fin Series 7
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5
    4383.34685.44736.74941.950165135.76087.6

    Note:

    Capacities bases on Fin Series 7
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5
    4476478248365046512452446216

    Note:

    Capacities bases on Fin Series 7
