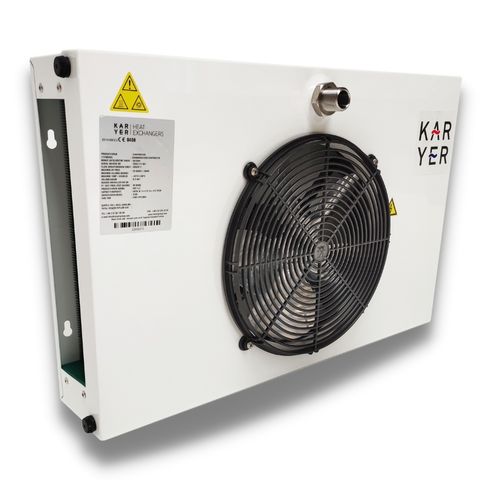

Karyer Dual-Flow Cabinet Evaporator - 1 x 250mm Fan - EDAM006A1250

Karyer Dual-Flow Cabinet Evaporator - 1 x 250mm Fan

Part Number: EDAM006A1250

Karyer Dual-Flow Cabinet Evaporator - 1 x 250mm Fan

Part Number: EDAM006A1250
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ED-A Series Cabinet Coolers - Dual Air Throw

    The Karyer ED-A series cabinet coolers are ceiling mounted heat exchangers with dual air throw specially designed compact evaporators for use in smaller commercial applications and refrigerated cabinets. The ED-A series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The 3.0mm fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    ED-A dual air throw cabinet coolers are supplied with world-renowned high quality and reliable brand fan motors with 250mm and 300mm fan blades fitted.

    ED-A series features:

    • Evaporator case panels - white powder coated aluminium
    • Stainless steel fittings (screws, nuts & bolts etc)
    • Dual air throw combined with compact coil and case design
    • Designed for flush mounting
    • Standard coils are engineered for multiple refrigerants
    • Aluminium fins with 3.0mm fin spacing
    • Epoxy powder coated coil and fin treatment
    • High-performance copper tube for excellent heat transfer
    • The drip/drain pans are screwed for easy access and cleaning
    • Single phase fan motors pre-wired back to the electrical connection box
  • Evaporator Specifications
    Weight Unpacked6 kg
    Weight Packed6.4 kg
    Suction Connection7 mm
    Liquid Connection7 mm
    TX Valve EqualiserInternal
    Tube Volume0.4 dm³
    Fin Spacing3 mm
    Air Flow
    Air Flow436 m³/h
    Air Throw - STD Fan2 x 2.4 m
    Fan Motors
    Voltage230 / 1 / 50 Hz
    Quantity1
    Diameter250 mm
    Total Watts65 watts
    Total Amps0.45 amps
  • ebm Fan MotorVNT 16-25
  • Karyer_ED-A

    Units Dimensions (mm)
    A600
    B390
    C120
    D161
    E217
    F284
    G140
    DrainG3/4 inch Thread
  • R134A
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-5-40510
    516564600654660666

    Note:

    R513A
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-5-40510
    534570612648654660

    Note:

    R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-5-40510
    594636678720726732

    Note:

    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-5-40510
    564606642684690696

    Note:

    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-5-40510
    570612648690696702

    Note:

    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-5-40510
    594636678720726732

    Note:
