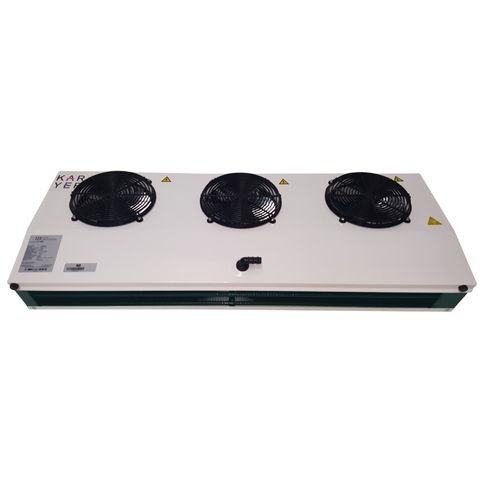

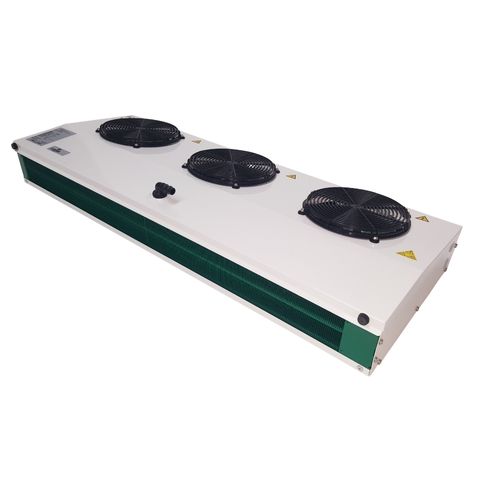

Karyer Low Temp Cabinet Evaporator - 3 x 200mm Fan - ECAL011E3200

Karyer Low Temp Cabinet Evaporator - 3 x 200mm Fan

Part Number: ECAL011E3200

Karyer Low Temp Cabinet Evaporator - 3 x 200mm Fan

Part Number: ECAL011E3200

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EC-A Series Single Blow Cabinet Coolers

    The Karyer EC-A series evaporators are specially designed for a wide variety of smaller ceiling mounted commercial refrigeration medium and low temperature applications such as storage and display cabinets etc specifically where space is a premium.

    The EC series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    The single-phase evaporator fan assemblies are ebm NIQ motors renowned worldwide for quality and reliability.

    These fan motors have been selected specifically to match what has been considered standard and commonly used configuration for many years in the Australian market.

    The EC-A Cabinet Cooler series features:

    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Designed for flush mounting
    • Epoxy powder coated fin treatment
    • Standard coils are designed for multiple refrigerants
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings are selected for specific models & applications
    • Hinged drain pan made easy for cleaning and access
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality single phase ebm NIQ fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes.
  • Evaporator Specifications
    Weight Unpacked14.6 kg
    Weight Packed15.2 kg
    Suction Connection1/2 "
    Liquid Connection3/8 "
    TX Valve EqualiserExternal
    Tube Volume1.931 dm³
    Fin Spacing5.5 mm
    Air Flow
    Air Flow709 m³/h
    Air Throw - STD Fan4.4 m
    Fan Motors
    Voltage230 / 1 / 50 Hz
    Diameter200 mm
    Total Watts30 watts
    Total Amps0.21 amps
    Defrost Heaters
    Voltage230 / 1 / 50 Hz
    Total Watts1180 watts
    Total Amps5.2 amps
  • Karyer_EC_A-D53

    Units Dimensions (mm)
    Drain19mm O.D. Barb
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)


    Capacity (w) @ 6 KTD
    SST (?C)


    Capacity (w) @ 6 KTD
    SST (?C)


    Capacity (w) @ 6 KTD
    SST (?C)
