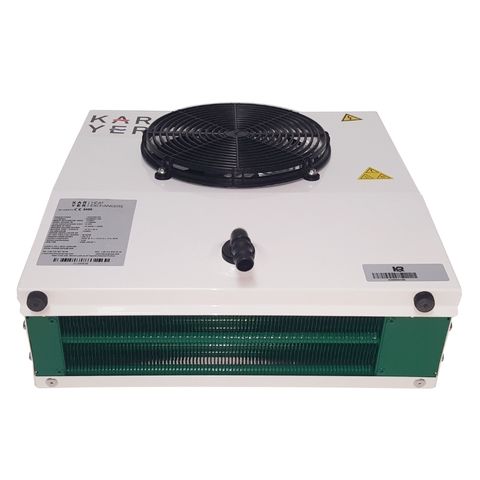

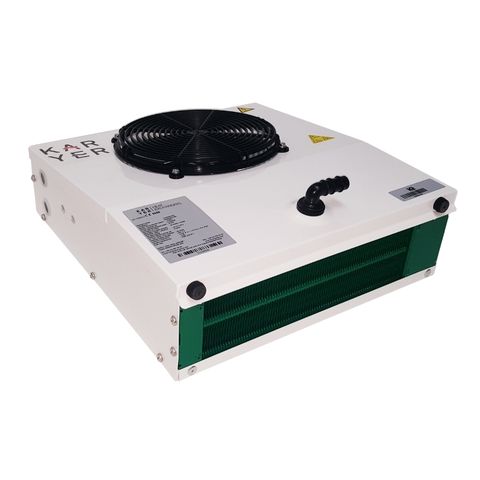

Karyer Med Temp Cabinet Evaporator - 1 x 200mm Fan - ECAM005A1200

Karyer Med Temp Cabinet Evaporator - 1 x 200mm Fan

Part Number: ECAM005A1200

Karyer Med Temp Cabinet Evaporator - 1 x 200mm Fan

Part Number: ECAM005A1200
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EC-A Series Single Blow Cabinet Coolers

    The Karyer EC-A series evaporators are specially designed for a wide variety of smaller ceiling mounted commercial refrigeration medium and low temperature applications such as storage and display cabinets etc specifically where space is a premium.

    The EC series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    The single-phase evaporator fan assemblies are ebm NIQ motors renowned worldwide for quality and reliability.

    These fan motors have been selected specifically to match what has been considered standard and commonly used configuration for many years in the Australian market.

    The EC-A Cabinet Cooler series features:

    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Designed for flush mounting
    • Epoxy powder coated fin treatment
    • Standard coils are designed for multiple refrigerants
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings are selected for specific models & applications
    • Hinged drain pan made easy for cleaning and access
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality single phase ebm NIQ fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes.
  • Evaporator Specifications
    Weight Unpacked5.4 kg
    Weight Packed5.6 kg
    Suction Connection3/8 "
    Liquid Connection3/8 "
    TX Valve EqualiserInternal
    Tube Volume0.6 dm³
    Fin Spacing3.8 mm
    Air Flow
    Air Flow207 m³/h
    Air Throw - STD Fan2.4 m
    Fan Motors
    Voltage230 / 1 / 50 Hz
    Quantity1
    Diameter200 mm
    Total Watts10 watts
    Total Amps0.07 amps
  • Karyer_EC_A-D50

    Units Dimensions (mm)
    A395
    B125
    C415
    D270
    E180
    Drain19mm O.D. Barb
  • R134A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    324342408414426450480

    Note:

    R513A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    324336396402414432456

    Note:

    R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    366378444450462480504

    Note:

    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    348360420426438456480

    Note:

    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    354360426432444462486

    Note:

    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    360366432438444462486

    Note:
