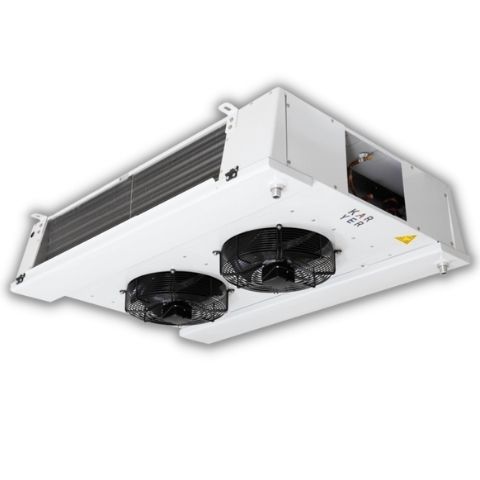

Karyer Med Temp Dual Throw Evap - 2 x 300mm Fan - EDM056A2300

Karyer Med Temp Dual Throw Evap - 2 x 300mm Fan

Part Number: EDM056A2300

Karyer Med Temp Dual Throw Evap - 2 x 300mm Fan

Part Number: EDM056A2300
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ED Series Evaporators - Dual Air Throw


    The Karyer ED series evaporators are ceiling mounted heat exchangers with dual air throw specially designed compact coils for use in commercial, industrial coolrooms and preparation rooms.

    The ED series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.
    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.


    The 4.2mm fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    The 300mm diameter single-phase AC evaporator fan assemblies are ebm-papst and were selected specifically as they are renowned worldwide for quality and reliability.

    ED series features:

    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Dual air throw combined with compact coil and case design
    • Feet are designed for flush mounting
    • Standard coils are engineered for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins with 4.2mm fin spacing
    • High-performance copper tube for excellent heat transfer
    • The drain trays are both hinged for easy access and cleaning
    • High quality single phase 300mm ebm AC fan motor assemblies
    • Fan motors are pre-wired back to the electrical connection box.
  • Evaporator Specifications
    Weight Unpacked46 kg
    Weight Packed72 kg
    Suction Connection1-1/8 "
    Liquid Connection1/2 "
    Tube Volume7.7 dm³
    Air Flow
    Air Flow2568 m3/hr
    Air Throw - STD Fan2 x 4.9 m
    Fan Motors
    Voltage230V / 1 / 50 Hz
    Quantity2
    Diameter300 mm
    Total Watts120 watts
    Total Amps0.56 amps
  • ebm Fan MotorsS4E300AS7280
  • Karyer_ED_D33

    Units Dimensions (mm)
    A1308
    B1030
    C245
    F985
    G305
    E11035
    E2518
    DrainG1" Thread (25mm ID Ø)
  • R134A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4086426651365166529255805946

    Note:

    Capacities bases on Fin Series 4.2
    R513A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4152424850465058511853285604

    Note:

    Capacities bases on Fin Series 4.2
    R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4614472256045622568859226228

    Note:

    Capacities bases on Fin Series 4.2
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4386448853225340540656285916

    Note:

    Capacities bases on Fin Series 4.2
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4428453653825394546056885976

    Note:

    Capacities bases on Fin Series 4.2
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4476458454425460552057426042

    Note:

    Capacities bases on Fin Series 4.2
