Karyer Med Temp Dual Throw Evap - 4 x 300mm Fan - EDM115A4300

Karyer Med Temp Dual Throw Evap - 4 x 300mm Fan

Part Number: EDM115A4300

Karyer Med Temp Dual Throw Evap - 4 x 300mm Fan

Part Number: EDM115A4300
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ED Series Evaporators - Dual Air Throw

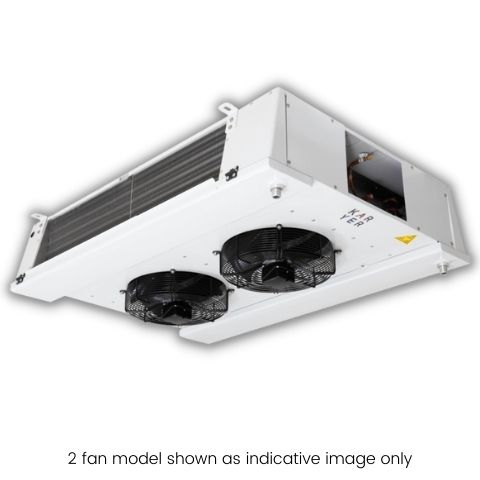

    The Karyer ED series evaporators are ceiling mounted heat exchangers with dual air throw specially designed compact coils for use in commercial, industrial coolrooms and preparation rooms.

    The ED series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.
    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.


    The 4.2mm fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    The 300mm diameter single-phase AC evaporator fan assemblies are ebm-papst and were selected specifically as they are renowned worldwide for quality and reliability.

    ED series features:

    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Dual air throw combined with compact coil and case design
    • Feet are designed for flush mounting
    • Standard coils are engineered for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins with 4.2mm fin spacing
    • High-performance copper tube for excellent heat transfer
    • The drain trays are both hinged for easy access and cleaning
    • High quality single phase 300mm ebm AC fan motor assemblies
    • Fan motors are pre-wired back to the electrical connection box.
  • Evaporator Specifications
    Weight Unpacked85 kg
    Weight Packed130 kg
    Suction Connection1-1/8 "
    Liquid Connection7/8 "
    Tube Volume16.1 dm³
    Air Flow
    Air Flow5136 m3/hr
    Air Throw - STD Fan2 x 7.3 m
    Fan Motors
    Voltage230V / 1 / 50 Hz
    Quantity4
    Diameter300 mm
    Total Watts240 watts
    Total Amps1.12 amps
  • ebm Fan MotorsS4E300AS7280
  • Karyer_ED_D35

    Units Dimensions (mm)
    A2308
    B1030
    C245
    F985
    G305
    E12035
    E2518
    E3500
    DrainG1" Thread (25mm ID Ø)
  • R134A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    837687421053610596108421143612186

    Note:

    Capacities bases on Fin Series 4.2
    R513A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    851487181033810368104941092611484

    Note:

    Capacities bases on Fin Series 4.2
    R404A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    946296841148411520116581213812762

    Note:

    Capacities bases on Fin Series 4.2
    R449A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    898891981090810944110761153212126

    Note:

    Capacities bases on Fin Series 4.2
    R448A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    908492941102211058111901165212252

    Note:

    Capacities bases on Fin Series 4.2
    R507
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    918093961114211178113101177212378

    Note:

    Capacities bases on Fin Series 4.2
