Buffalo Med Temp Evaporator 4 x 400mm Fan - GACC176MACS0

Buffalo Med Temp Evaporator 4 x 400mm Fan

Part Number: GACC176MACS0

Buffalo Med Temp Evaporator 4 x 400mm Fan

Part Number: GACC176MACS0
Buffalo

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • The GACC air coolers are equipped with a staggered tube system, internally grooved tubes and specially pressed fins. Optimised fin systems and adapted pipe circuiting offer safe operation and high efficiency.

  • Evaporator Specifications
    Weight Unpacked94 kg
    Inlet Connection22 mm
    Outlet Connection42 mm
    Air Flow
    Air Flow11520 m³/h
    Air Throw - STD Fan13 m
    Fan Motors
    Voltage230V / 1 / 50Hz
    Quantity4
    Diameter400 mm
    Total Watts760 watts
    Total Amps3.4 amps

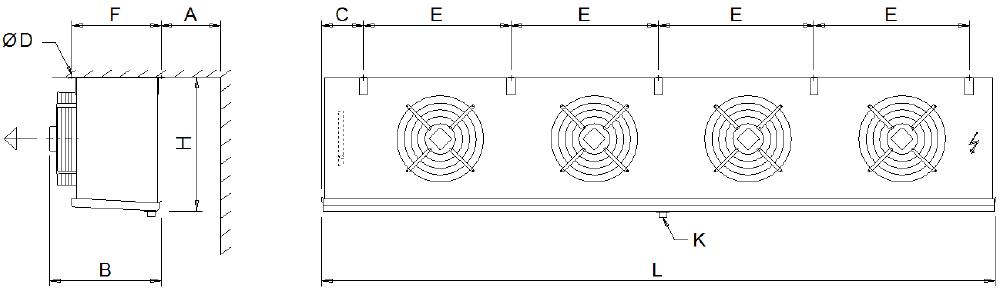

  • Buffalo_GACC-MACS-06

    Units Dimensions (mm)
    L3046
    B560
    H565
    E680
    F406
    C177
    A400
    ØD11
    KG1-1/4
  • R404A
    Capacity (w) @ 6 KTD
    SST (°C)
    -10-8-6-4-20246
    15054.4815573.616438.81730418082.6820245.6821283.9222149.1223360.4

    Note:

    Capacities bases on Fin Series 4
    R134A
    Capacity (w) @ 6 KTD
    SST (°C)
    -10-8-6-4-20246
    15315.4815843.616723.81760418396.1820596.6821652.9222533.1223765.4

    Note:

    Capacities bases on Fin Series 4
    R507
    Capacity (w) @ 6 KTD
    SST (°C)
    -10-8-6-4-20246
    14532.4815033.615868.81670417455.6819543.6820545.9221381.1222550.4

    Note:

    Capacities bases on Fin Series 4
