Buffalo Med Temp Evaporator 4 x 500mm Fan - GACC421MACS0

Buffalo Med Temp Evaporator 4 x 500mm Fan

Part Number: GACC421MACS0

Buffalo Med Temp Evaporator 4 x 500mm Fan

Part Number: GACC421MACS0
Buffalo

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • The GACC air coolers are equipped with a staggered tube system, internally grooved tubes and specially pressed fins. Optimised fin systems and adapted pipe circuiting offer safe operation and high efficiency.

  • Evaporator Specifications
    Weight Unpacked208 kg
    Inlet Connection35 mm
    Outlet Connection54 mm
    Air Flow
    Air Flow24840 m?/h
    Air Throw - STD Fan22 m
    Fan Motors
    Voltage3 Phase AC
    Quantity4
    Diameter500 mm
    Total Watts2480 watts
    Total Amps5.8 amps

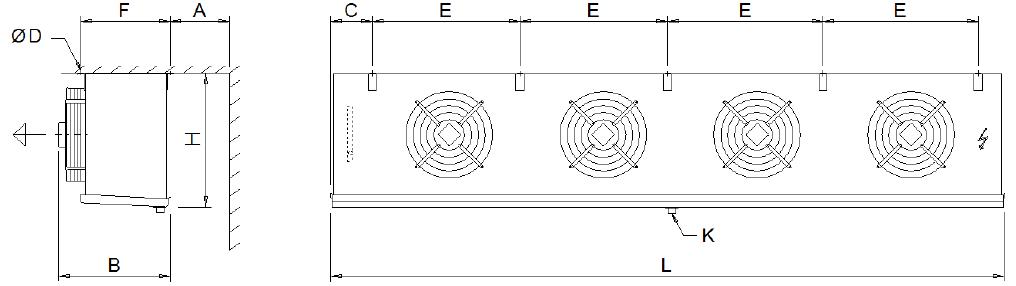

  • Units Dimensions (mm)
    L4387
    B623
    H755
    E1000
    F486
    C234
    A550
    ØD11
    KG1-1/4
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-8-6-4-20246
    38977.7440321.842561.94480246818.0952418.3455106.4657346.5660482.7

    Note:

    Capacities bases on Fin Series 4
    R134A
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-8-6-4-20246
    36628.7437891.839996.94210243996.5949259.3451785.4653890.5656837.7

    Note:

    Capacities bases on Fin Series 4
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -10-8-6-4-20246
    37672.7438971.841136.94330245250.5950663.3453261.4655426.5658457.7

    Note:

    Capacities bases on Fin Series 4
