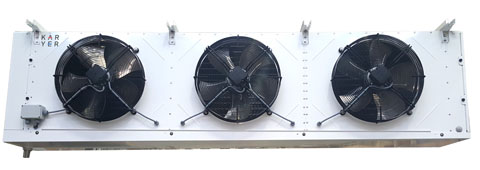

Karyer Med Temp Evap 4.2mm Fin Spacing - 3 x 500mm Fan - EAM372A3500

Karyer Med Temp Evap 4.2mm Fin Spacing - 3 x 500mm Fan

Part Number: EAM372A3500

Karyer Med Temp Evap 4.2mm Fin Spacing - 3 x 500mm Fan

Part Number: EAM372A3500
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EA Series Evaporators

    The Karyer EA series evaporators are specially designed for a wide variety of small to large commercial refrigeration applications such as coolrooms and freezer rooms.

    The EA series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EA series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
      • (except models EAM351A3500, EAM372A3500 & EAM440A4500)
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes



  • Evaporator Specifications
    Weight Unpacked183 kg
    Weight Packed228 kg
    Suction Connection2-1/8 "
    Liquid Connection1-5/8 "
    Tube Volume41.3 dm³
    Fin Spacing4.2 mm
    Air Flow
    Air Flow18788 m³/h
    Air Throw - STD Fan18.5 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Quantity3
    Diameter500 mm
    Total Watts2520 watts
    Total Amps4.35 amps
  • Drain PanD140450
    Side Panel with Two Hinges - HeaderD1404464
    Side Panel with Two Hinges - Opposite SideD1404466
    ebm Fan MotorsS4D500AM0301
  • Karyer_EA-D12

    Units Dimensions (mm)
    A2857
    B507
    C721 ±5
    D683
    E721
    F2585
    F1867.5
    F2850
    G627
    H587
    DrainR1 1/2" Thread (40mm ID Ø)
  • R134A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    27036282243400834254352443718239612

    Note:

    Capacities bases on Fin Series 4.2
    R513A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    27486281283336033510341043550837332

    Note:

    Capacities bases on Fin Series 4.2
    R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    30540312543706837236378963945041478

    Note:

    Capacities bases on Fin Series 4.2
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    29016296943521435370360003747639402

    Note:

    Capacities bases on Fin Series 4.2
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    29316300063558635742363783787239816

    Note:

    Capacities bases on Fin Series 4.2
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    29622303183595236114367563826240236

    Note:

    Capacities bases on Fin Series 4.2
