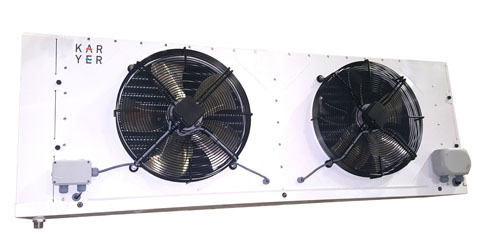

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 2 x 500mm Fan - EAM221A2500EVD

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 2 x 500mm Fan

Part Number: EAM221A2500EVD

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 2 x 500mm Fan

Part Number: EAM221A2500EVD
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EA Series Evaporators

    The Karyer EA series evaporators are specially designed for a wide variety of small to large commercial refrigeration applications such as coolrooms and freezer rooms.

    The EA series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability.
    These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EA series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes

  • Evaporator Specifications
    Weight Unpacked99.0 kg
    Weight Packed129.0 kg
    Suction Connection1-5/8 "
    Liquid Connection7/8 "
    Tube Volume21.0 dm³
    Fin Spacing4.2 mm
    Air Flow
    Air Flow13657 m³/h
    Air Throw - STD Fan19.3 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Quantity2
    Diameter500 mm
    Total Watts1680 watts
    Total Amps2.9 amps
  • ebm Fan MotorsS4D500AM0301
    Drain PanD140446
    Side Panel with Two Hinges - HeaderD140463
    Side Panel with Two Hinges - Opposite SideD140465
    EVD-ice Valves - Valve CartridgeE2VATT35Z0
    EVD-ice Valves - Driver ModuleEVDM011S60
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Replacement Motor / StatorE2VSTA0330
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
  • Karyer_EA-D11

    Units Dimensions (mm)
    A2007
    B407
    C630 ±5
    D683
    E691
    F1735
    F1867.5
    G445
    DrainR1 1/4" Thread (32mm ID Ø)
  • R134A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    16086167882023220400210602221823676

    Note:

    Capacities bases on Fin Series 4.2
    R513A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    16350167341984819956203882121622308

    Note:

    Capacities bases on Fin Series 4.2
    R404A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    18168185942205022170226502357424786

    Note:

    Capacities bases on Fin Series 4.2
    R449A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    17262176642094621060215162239823544

    Note:

    Capacities bases on Fin Series 4.2
    R448A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    17442178502116821282217442263223796

    Note:

    Capacities bases on Fin Series 4.2
    R507
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    17628180362139021504219662286624048

    Note:

    Capacities bases on Fin Series 4.2
