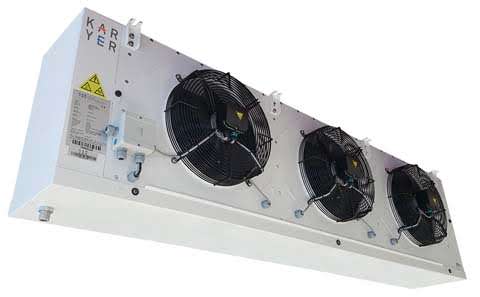

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 3 x 300mm Fan - EBM072A3300EVD

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 3 x 300mm Fan

Part Number: EBM072A3300EVD

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 3 x 300mm Fan

Part Number: EBM072A3300EVD
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EB Series Evaporators

    The Karyer EB series evaporators are specially designed for a wide variety of commercial refrigeration applications such as coolrooms, freezer rooms, walk-in medium temperature rooms and low temperature display freezers etc.

    The EB series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The single-phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected in 300mm & 350mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EB series features:

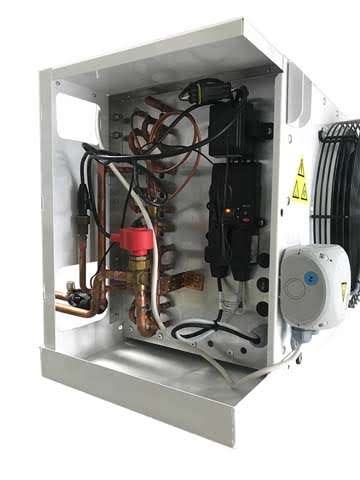

    • Premium “EVD” models factory fitted EVD-ice Z valves including Ultra Cap
    • Standard models - without valve fitted (EVD-ice or TX valve)
    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Feet flush mounting with minor level adjustment - powder coated white
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Reversible drip tray aluminium powder coated - all models
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire heater safety thermostats (5.0amp) - low temp models only
    • High quality single phase 300mm & 350mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection box(s)
  • Evaporator Specifications
    Weight Unpacked36 kg
    Weight Packed55 kg
    Suction Connection7/8 "
    Liquid Connection5/8 "
    Tube Volume6 dm³
    Air Flow
    Air Flow3606 m³/h
    Air Throw - STD Fan6.5 m
    Fan Motors
    Voltage230 / 1 / 50 Hz
    Quantity3
    Diameter300 mm
    Total Watts190 watts
    Total Amps0.84 amps
  • Drain TraysD134213
    EVD-ice Valves - Driver ModuleEVDM011S50
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
    EVD-ice Valves - Replacement Motor / StatorE2VSTA0330
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Valve CartridgeE2VATT24Z0
    Side Panel with Two Hinges - HeaderD134189
    Side Panel with Two Hinges - Opposite SideD134191
    ebm Fan MotorsS4E300AS7244
  • Karyer_EB-D3

    Units Dimensions (mm)
    A1567
    B339
    C426
    D458
    E1295
    E1438
    E2420
    G426
    DrainG1" Thread (25mm ID Ø)
  • R134A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5202543065406630677471527614

    Note:

    Capacities bases on Fin Series 4.2
    R513A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4746.65410.86415.26485.46555.66825.67176.6

    Note:

    Capacities bases on Fin Series 4.2
    R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5274601271287206728475847974

    Note:

    Capacities bases on Fin Series 4.2
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5010.35711.46771.66845.76919.87204.87575.3

    Note:

    Capacities bases on Fin Series 4.2
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5063.045771.526842.886917.766992.647280.647655.04

    Note:

    Capacities bases on Fin Series 4.2
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5694582669126990706873567734

    Note:

    Capacities bases on Fin Series 4.2
    R515B
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5088531063966486662469967446

    Note:

    Capacities bases on Fin Series 4.2
