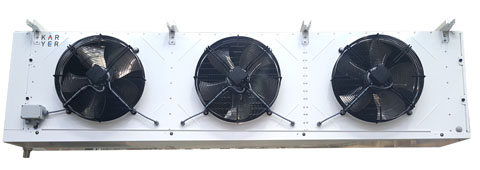

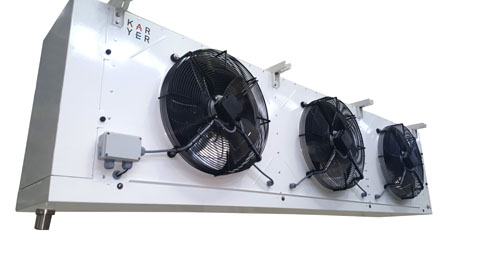

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 3 x 500mm Fan - EAM259A3500EVD

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 3 x 500mm Fan

Part Number: EAM259A3500EVD

Karyer Med Temp EVD Evap 4.2mm Fin Spacing - 3 x 500mm Fan

Part Number: EAM259A3500EVD
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EA Series Evaporators

    The Karyer EA series evaporators are specially designed for a wide variety of small to large commercial refrigeration applications such as coolrooms and freezer rooms.

    The EA series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability.
    These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EA series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes

  • Evaporator Specifications
    Weight Unpacked124.0 kg
    Weight Packed167.0 kg
    Suction Connection2-1/8 "
    Liquid Connection1-1/8 "
    Tube Volume21.0 dm³
    Fin Spacing4.2 mm
    Air Flow
    Air Flow22536 m³/h
    Air Throw - STD Fan22.2 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Quantity3
    Diameter500 mm
    Total Watts2520 watts
    Total Amps4.35 amps
  • ebm Fan MotorsS4D500AM0301
    Drain PanD140448
    Side Panel with Two Hinges - HeaderD140426
    Side Panel with Two Hinges - Opposite SideD140427
    EVD-ice Valves - Valve CartridgeE2VATT35Z0
    EVD-ice Valves - Driver ModuleEVDM011S60
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Replacement Motor / StatorE2VSTA0330
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
  • Karyer_EA-D12

    Units Dimensions (mm)
    A2857
    B357
    C580 ±5
    D683
    E721
    F2585
    F1867.5
    F2850
    G550
    H395
    DrainR1 1/2" Thread (40mm ID Ø)
  • R134A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    18780196022361623838247142607627780

    Note:

    Capacities bases on Fin Series 4.2
    R513A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    19092195362316623316239162490026178

    Note:

    Capacities bases on Fin Series 4.2
    R404A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    21210217082574025908265742766629088

    Note:

    Capacities bases on Fin Series 4.2
    R449A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    20148206222445624612252482628027636

    Note:

    Capacities bases on Fin Series 4.2
    R448A
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    20364208382470824870255122656227924

    Note:

    Capacities bases on Fin Series 4.2
    R507
    Capacity (w) @ 6 KTD
    SST (°C)
    -15-10-5-40510
    20574210542497225134257762683228218

    Note:

    Capacities bases on Fin Series 4.2
