Buffalo Low Temp Evaporator 2 x 400mm Fan - GACC062LACS1

Buffalo Low Temp Evaporator 2 x 400mm Fan

Part Number: GACC062LACS1

Buffalo Low Temp Evaporator 2 x 400mm Fan

Part Number: GACC062LACS1
Buffalo

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • The GACC air coolers are equipped with a staggered tube system, internally grooved tubes and specially pressed fins. Optimised fin systems and adapted pipe circuiting offer safe operation and high efficiency.

  • Evaporator Specifications
    Weight Unpacked54 kg
    Inlet Connection16 mm
    Outlet Connection28 mm
    Air Flow
    Air Flow6440 m?/h
    Air Throw - STD Fan14 m
    Fan Motors
    Voltage230V / 1 / 50Hz
    Quantity2
    Diameter400 mm
    Total Watts380 watts
    Total Amps1.7 amps
    Defrost Heaters
    Voltage230V / 1 / 50Hz
    Total Watts4945
    Total Amps21.5 amps

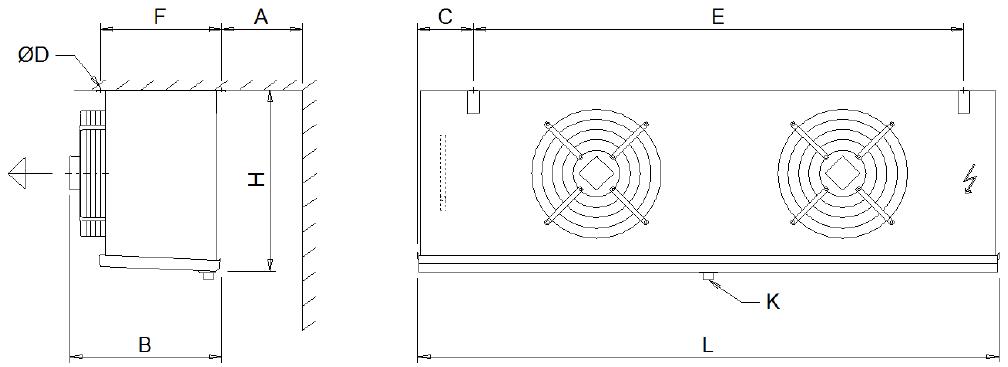

  • Units Dimensions (mm)
    L1686
    B560
    H565
    E1360
    F406
    C177
    A400
    ØD11
    KG1-1/4
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -40-35-30-25-24-20-15-10-5
    31024404.845273.46079.9262046576.247072.567630.928375.4

    Note:

    Capacities bases on Fin Series 7
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -40-35-30-25-24-20-15-10-5
    30514332.425186.75979.9661026468.126956.287505.468237.7

    Note:

    Capacities bases on Fin Series 7
