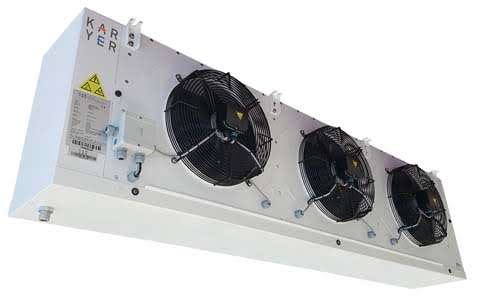

Karyer Low Temp Evaporator 7.0mm Fin Spacing - 3 x 350mm Fan - EBL072E3350

Karyer Low Temp Evaporator 7.0mm Fin Spacing - 3 x 350mm Fan

Part Number: EBL072E3350

Karyer Low Temp Evaporator 7.0mm Fin Spacing - 3 x 350mm Fan

Part Number: EBL072E3350
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EB Series Evaporators

    The Karyer EB series evaporators are specially designed for a wide variety of commercial refrigeration applications such as coolrooms, freezer rooms, walk-in medium temperature rooms and low temperature display freezers etc.

    The EB series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The single-phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected in 300mm & 350mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EB series features:

    • Premium “EVD” models factory fitted EVD-ice Z valves including Ultra Cap
    • Standard models - without valve fitted (EVD-ice or TX valve)
    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Feet flush mounting with minor level adjustment - powder coated white
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Reversible drip tray aluminium powder coated - all models
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire heater safety thermostats (5.0amp) - low temp models only
    • High quality single phase 300mm & 350mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection box(s)
  • Evaporator Specifications
    Weight Unpacked55 kg
    Weight Packed77 kg
    Suction Connection1-1/8 "
    Liquid Connection5/8 "
    Tube Volume7.1 dm³
    Air Flow
    Air Flow8492 m³/h
    Air Throw - STD Fan13.2 m
    Fan Motors
    Voltage230 / 1 / 50 Hz
    Quantity3
    Diameter350 mm
    Total Watts500 watts
    Total Amps2.19 amps
    Defrost Heaters
    Voltage230 / 1 / 50 Hz
    Total Watts 17600 watts
    Total Amps 133 amps

    1. To be confirmed

  • ebm Fan MotorsS4E350AN0248
    Defrost Safety Termination ThermostatD90653
    Coil Heater SetD91424
    Pan Heater SetD91424
    Drain TraysD134215
    Side Panel with Two Hinges - HeaderD134190
    Side Panel with Two Hinges - Opposite SideD134192
  • Karyer_EB-D6

    Units Dimensions (mm)
    A2127
    B469
    C533
    D463
    E1835
    E1617.5
    E2600
    G553
    DrainG1" Thread (25mm ID Ø)
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5-2
    67027158724275607584765690789270

    Note:

    Capacities bases on Fin Series 7
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5-2
    6299.886728.526807.487106.47128.967196.648533.328712

    Note:

    Capacities bases on Fin Series 7
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5-2
    6366.96800.16879.971827204.87273.28624.18808

    Note:

    Capacities bases on Fin Series 7
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -30-25-24-20-15-10-5-2
    65046948702673327362742888088994

    Note:

    Capacities bases on Fin Series 7
