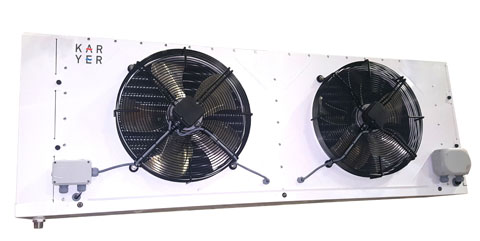

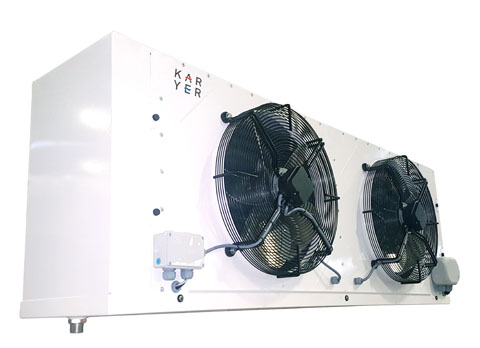

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 2 x 500mm Fan - EAL185E2500EVD

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 2 x 500mm Fan

Part Number: EAL185E2500EVD

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 2 x 500mm Fan

Part Number: EAL185E2500EVD
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EA Series Evaporators

    The Karyer EA series evaporators are specially designed for a wide variety of small to large commercial refrigeration applications such as coolrooms and freezer rooms.

    The EA series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EA series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
      • (except models EAM351A3500, EAM372A3500 & EAM440A4500)
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes



  • Evaporator Specifications
    Weight Unpacked124 kg
    Weight Packed157 kg
    Suction Connection2-1/8 "
    Liquid Connection1-1/8 "
    Tube Volume28 dm³
    Fin Spacing7 mm
    Air Flow
    Air Flow13594 m³/h
    Air Throw - STD Fan19.2 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Quantity2
    Diameter500 mm
    Total Watts1680 watts
    Total Amps2.9 amps
    Defrost Heaters
    Voltage230 / 1 / 50 Hz
    Total Watts16280 watts
    Total Amps70.4 amps
  • Coil Heater SetD90059
    Defrost Safety Termination ThermostatD92041
    Drain PanD140447
    EVD-ice Valves - Driver ModuleEVDM011S60
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
    EVD-ice Valves - Replacement Motor / StatorE3VSTA0350
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Valve Cartridge (hermetic E3V)E3V45SWR70
    Pan Heater SetD90059
    Side Panel with Two Hinges - HeaderD140464
    Side Panel with Two Hinges - Opposite SideD140465
    ebm Fan MotorsS4D500AM0301
  • Karyer_EA-D11

    Units Dimensions (mm)
    A2007
    B507
    C730 ±5
    D683
    E691
    F1735
    F1867.5
    G545
    DrainR1 1/4" Thread (32mm ID Ø)
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    131521714818324185281933819386198362352624012

    Note:

    Capacities bases on Fin Series 7
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    123661612217226174181818018222186482211622572

    Note:

    Capacities bases on Fin Series 7
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    124981629017406175981837218414188462235022812

    Note:

    Capacities bases on Fin Series 7
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    127561663217772179701876218804192422282423292

    Note:

    Capacities bases on Fin Series 7
