Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 3 x 500mm Fan - EAL226E3500EVD

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 3 x 500mm Fan

Part Number: EAL226E3500EVD

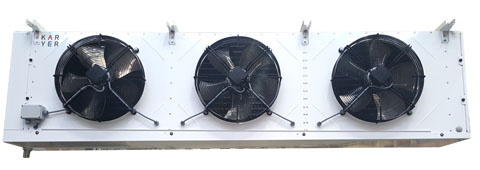

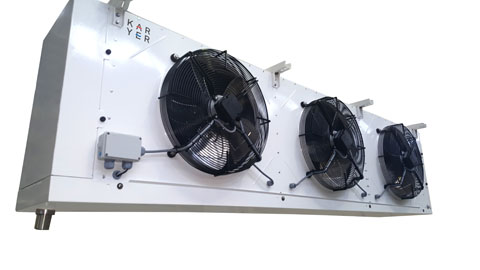

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 3 x 500mm Fan

Part Number: EAL226E3500EVD
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EA Series Evaporators

    The Karyer EA series evaporators are specially designed for a wide variety of small to large commercial refrigeration applications such as coolrooms and freezer rooms.

    The EA series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EA series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
      • (except models EAM351A3500, EAM372A3500 & EAM440A4500)
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes



  • Evaporator Specifications
    Weight Unpacked161 kg
    Weight Packed203 kg
    Suction Connection54 mm
    Liquid Connection19 mm
    Tube Volume31.5 dm³
    Fin Spacing7 mm
    Air Flow
    Air Flow21873 m³/h
    Air Throw - STD Fan21.5 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Quantity3
    Diameter500 mm
    Total Watts2520 watts
    Total Amps4.35 amps
    Defrost Heaters
    Voltage230 / 1 / 50 Hz
    Total Watts23760 watts
    Total Amps102 amps
  • Coil Heater SetD90612
    Defrost Safety Termination ThermostatD92041
    Drain PanD140449
    EVD-ice Valves - Driver ModuleEVDM011S60
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
    EVD-ice Valves - Replacement Motor / StatorE3VSTA0350
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Valve Cartridge (hermetic E3V)E3V55SWRC0
    Pan Heater SetD90612
    Side Panel with Two Hinges - HeaderD140463
    Side Panel with Two Hinges - Opposite SideD140465
    ebm Fan MotorsS4D500AM0301
  • Karyer_EA-D12

    Units Dimensions (mm)
    A2857
    B407
    C630 ±5
    D683
    E721
    F2585
    F1867.5
    F2850
    G600
    H445
    DrainR1 1/2" Thread (40mm ID Ø)
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    160502092222356226022359823610238562829028878

    Note:

    Capacities bases on Fin Series 7
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    150841966821012212462218222194224222659227144

    Note:

    Capacities bases on Fin Series 7
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    152461987821240214742241622428226622687427432

    Note:

    Capacities bases on Fin Series 7
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    155642029821684219242289022926231422744428008

    Note:

    Capacities bases on Fin Series 7
