Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 4 x 500mm Fan - EAL348E4500EVD

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 4 x 500mm Fan

Part Number: EAL348E4500EVD

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 4 x 500mm Fan

Part Number: EAL348E4500EVD
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EA Series Evaporators

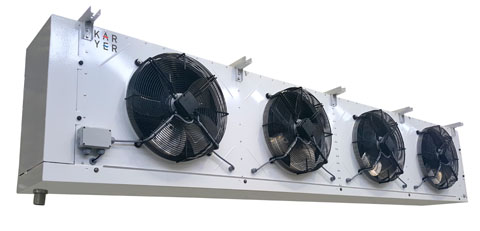

    The Karyer EA series evaporators are specially designed for a wide variety of small to large commercial refrigeration applications such as coolrooms and freezer rooms.

    The EA series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability.
    These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EA series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes

  • Evaporator Specifications
    Weight Unpacked243 kg
    Weight Packed303 kg
    Suction Connection2-1/8 "
    Liquid Connection1-5/8 "
    Tube Volume55.1 dm³
    Fin Spacing7 mm
    Air Flow
    Air Flow27188 m³/h
    Air Throw - STD Fan20.9 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Quantity4
    Diameter500 mm
    Total Watts3360 watts
    Total Amps5.8 amps
    Defrost Heaters
    Voltage230 / 1 / 50 Hz
    Total Watts30800 watts
    Total Amps133 amps
  • Coil Heater SetD90659
    Defrost Safety Termination ThermostatD92041
    Drain PanD140453
    EVD-ice Valves - Driver ModuleEVDM011S60
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
    EVD-ice Valves - Replacement Motor / StatorE3VSTA0350
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Valve Cartridge (hermetic E3V)E3V55SWRC0
    Pan Heater SetD90659
    Side Panel with Two Hinges - HeaderD140464
    Side Panel with Two Hinges - Opposite SideD140466
    ebm Fan MotorsS4D500AM0301
  • Karyer_EA-D13

    Units Dimensions (mm)
    A3707
    B507
    C730 ±5
    D683
    E721
    F3435
    F1867.5
    F2850
    G700
    H545
    DrainR1 1/2" Thread (40mm ID Ø)
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    247263223234440348243635436360372064412445036

    Note:

    Capacities bases on Fin Series 7
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    232383030032376327363417034176349744147842336

    Note:

    Capacities bases on Fin Series 7
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    234903061832718330843453634542353464191642786

    Note:

    Capacities bases on Fin Series 7
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -35-30-25-24-20-15-10-5-2
    239823126633402337743526235268360904280443686

    Note:

    Capacities bases on Fin Series 7
