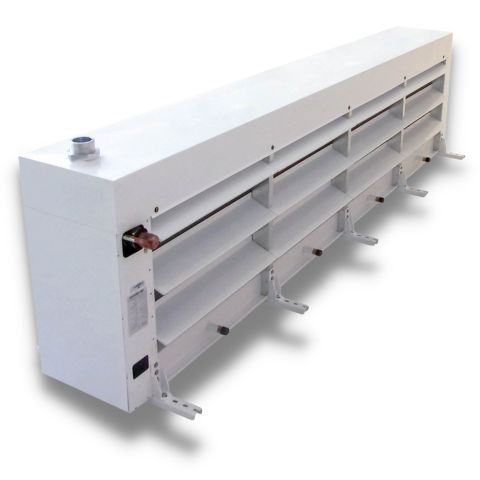

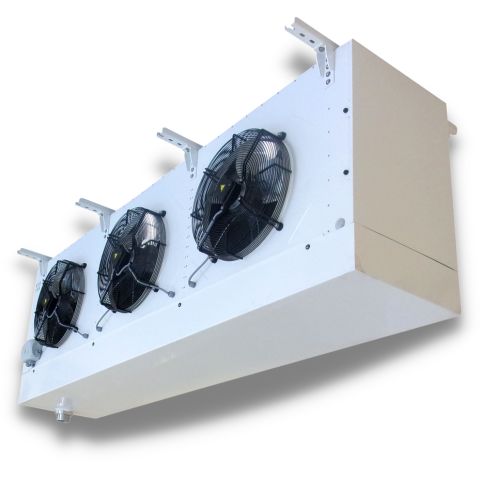

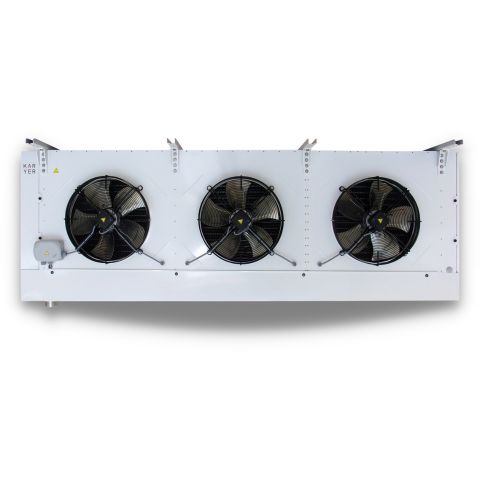

Karyer Water Defrost LT EVD Evap 7.0mm Fin Spacing - 3x500mm Fan - WEAL226W3500EVD

Karyer Water Defrost LT EVD Evap 7.0mm Fin Spacing - 3x500mm Fan

Part Number: WEAL226W3500EVD

Karyer Water Defrost LT EVD Evap 7.0mm Fin Spacing - 3x500mm Fan

Part Number: WEAL226W3500EVD

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • WEA-L Water Defrost Low Temperature Series Evaporators

    The Karyer WEA-L series are water defrost evaporators which are specially designed for a wide variety of commercial low temperature refrigeration applications such as freezer rooms.

    The WEA-L series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The 7.0mm fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.


    The WEA-L series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated flush mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Generous 7.0mm fin spacings
    • Access doors aluminium powder coated on both ends - hinged and removable
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors are pre-wired back to electrical connection boxes
  • Evaporator Specifications
    Weight Unpacked212 kg
    Weight Packed282 kg
    Suction Connection2-1/8 "
    Liquid Connection1-1/8 "
    Water Inlet Connection3 x 32 mm
    Drain Outlet Connection80 mm
    Tube Volume31.5 dm³
    Fin Spacing7 mm
    Air Flow
    Air Flow21873 m³/h
    Air Throw - STD Fan21.5 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Diameter500 mm
    Total Watts2520 watts
    Total Amps4.35 amps
  • Drain PanD144676
    EVD-ice Valves - Driver ModuleEVDM011S60
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
    EVD-ice Valves - Replacement Motor / StatorE3VSTA0350
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Valve CartridgeE3V55SWRC0
    Side Panel with Two Hinges - HeaderD144671
    Side Panel with Two Hinges - Opposite SideD144672
    ebm Fan MotorsS4D500AM0301
  • Karyer_WEA-L_WDD11

    Units Dimensions (mm)
  • R404A
    Capacity (w) @ 6 KTD
    SST (?C)


    Capacity (w) @ 6 KTD
    SST (?C)


    Capacity (w) @ 6 KTD
    SST (?C)


    Capacity (w) @ 6 KTD
    SST (?C)
