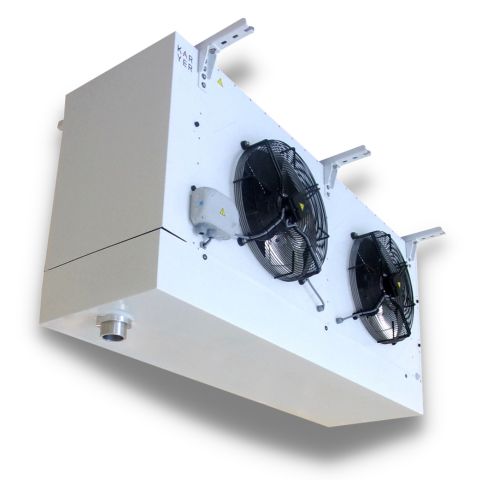

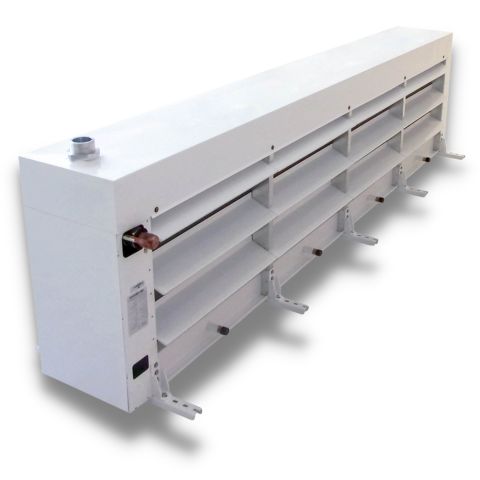

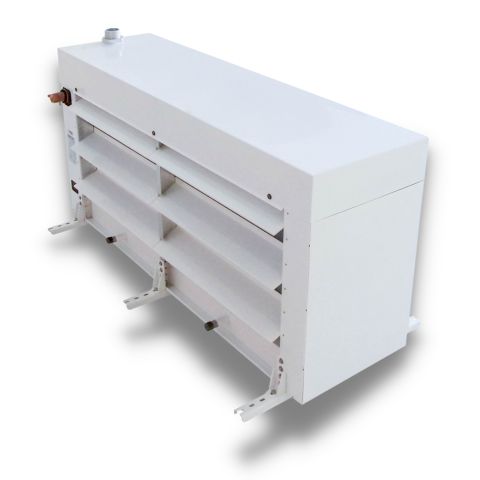

WEA-L Water Defrost Low Temperature Series Evaporators
The Karyer WEA-L series are water defrost evaporators which are specially designed for a wide variety of commercial low temperature refrigeration applications such as freezer rooms.
The WEA-L series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.
These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.
The 7.0mm fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.
The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.
The WEA-L series standard features:
- Factory fitted with EVD-ice Z valves including Ultra Cap
- Stainless Steel fittings (screws, nuts & bolts etc)
- White powder coated aluminium case panels
- White powder coated flush mounting feet
- Standard coils are designed for multiple refrigerants
- High performance circuitry with Venturi-type distributor technology
- Aluminium fins and high-performance copper tube for excellent heat transfer
- Generous 7.0mm fin spacings
- Access doors aluminium powder coated on both ends - hinged and removable
- High quality three phase 500mm ebm AC fan motor assemblies
- Fan motors are pre-wired back to electrical connection boxes
