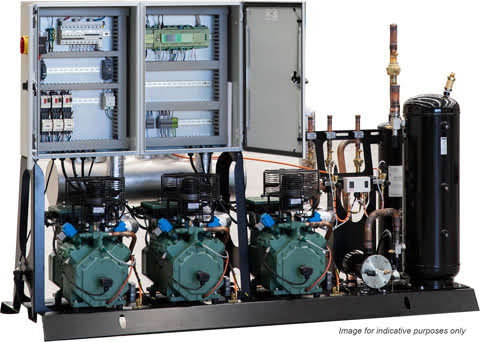

SEMI HERMETIC RECIPROCATING COMPRESSORS - MINI-RACKBITZER's multiple compressor mini racks offer high flexibility and a variety of capacity range on a compact platform. They are designed and manufactured to offer a reduced installation time and minimum maintenance time made possible through easy service access and isolation points for all major components .
STANDARD FEATURES
- Two, three or four compressor racks
- Suction gas header with liquid floodback protection
- Suction demountable filters
- Fully insulated suction lines
- Vertical liquid receiver
- Demountable liquid line drier, sight glass assembly
- High efficient oil Separator with oil level sight glass
- Oil filter assembly
- Non adjustable high pressure safety switch per compressor
- Oil return sight glass
- Anti vibration mounting pads
- Manufactured under ISO 9001 quality control
- Fully wired switch board and controller
OPTIONS
- CRII capacity control
- CM-RC-01 Module
- Compressor head fan
- Adjustable compressor safety switch
| Brand | Bitzer |
| Crankcase Heater | 480W |
| Discharge Line Connection | 1-5/8" |
| Displacement m3/h | 129.92 |
| Liquid Line Connection | 4 x 7/8" |
| Max. Operating Current | 80.8 amps |
| Max. Power Consumption | 45.2kW |
| Motor Connection Voltage | 380-420VY/3/50Hz |
| Number of Compressors | 4 |
| Receiver Inlet Connection | 1-5/8" |
| Suction Line Connection | 4 x 1-3/8" |
| Weight | 560kg |
Notes:
Use E10105 for Electrical
A: 2600mm B: 800mm C: 800mm D: 360mm E: 940mm F: 30mm G: 740mm
