Aspen Mini Tank Pump - FP1056
Aspen Mini Tank Pump
Part Number: FP1056Aspen Mini Tank Pump
Part Number: FP1056Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Product Description
Mini Tank Condensate Removal Pump
The new and improved Mini Tank pump can be wall mounted, floor mounted, in-pan or suspended on M8 / M10 rod. Using piston technology this is a compact, powerful and multi functional tank pump.
35L/h max. flow

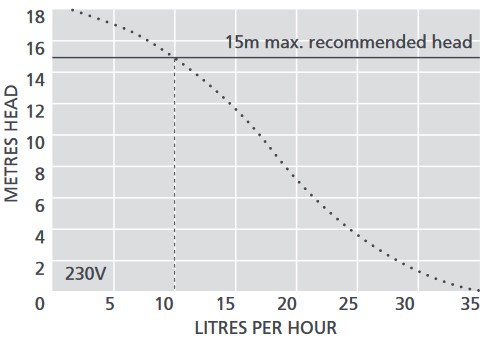

15m max. rec. head (flow rate 10L/h)
Key Features:
- Four ways to install
- Compact & discreet
- Can be located in drain pan
- Easy maintenance
Suitability:
- Up to 46kW / 157,000Btu/h
- Ducted units; Floor standing & chassis units; Cassette units
- Perfect for - Installation versatility

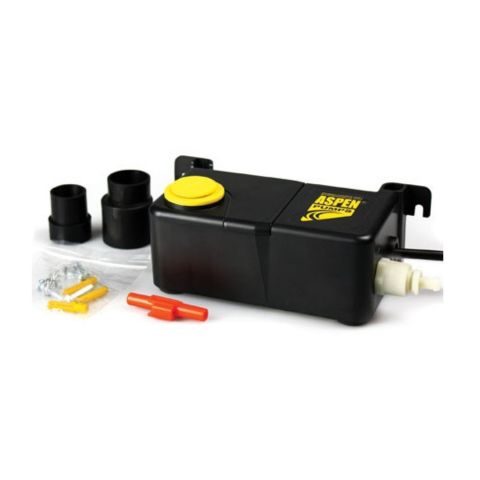

In the Box:
- mini Tank pump (including hard wired 1.5m power cable)
- x2 Rubber adaptors (21.5mm & 31mm)
- anti siphon device
- Fixing kit
- Install manual
Product Specifications

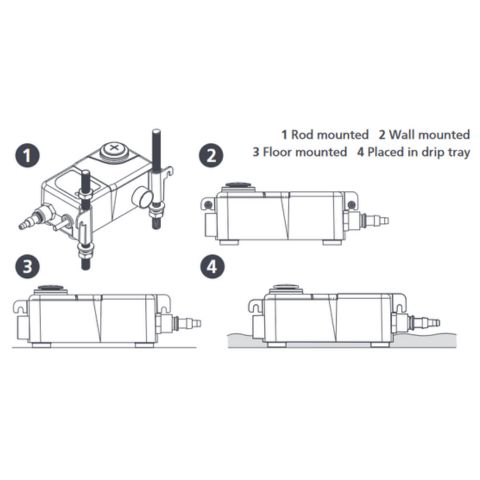

| 4 ways to install | 1 - Rod mounted, 2 - Wall mounted, 3 - Floor mounted, 4 - Placed in drip tray |
| Brand | Aspen |
| Fully potted | Yes |
| In the box | mini Tank pump (including hard wired 1.5m power cable), x2 Rubber adaptors (21.5mm & 31mm), anti siphon device, Fixing kit, Install manual |
| Inlet/outlet | x2 22mm, 12mm & 27mm in, 6mm & 10mm out |
| IP Protection | IP67 |
| Max. flow | 35L/h @ 0 head |
| Max. rec. head | 15m |
| Max. unit ouput | 46kW / 157,000Btu/h |
| Max. water temp | 40°C |
| Power Supply | 230V aC 50-60Hz 0.1a |
| Rated | Non-continuous |
| Safety switch | 3.0A Normally closed |
| Self priming | Yes |
| Sound level @ 1m | 35dB(A) |
| Tank Capacity | 0.24L |
| Thermal protection | Yes |
| Weight | 0.57kg |

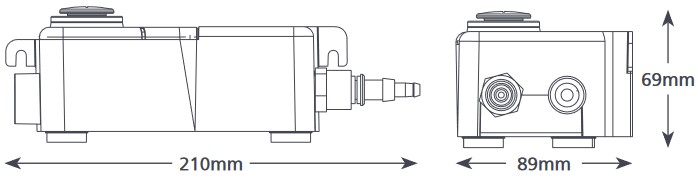

Dimension Data
L: 210mm W: 89mm H: 69mm
Capacities
