Aspen Silent+ Mini Orange Condensate Pump - FP3313

Aspen Silent+ Mini Orange Condensate Pump

Part Number: FP3313

Aspen Silent+ Mini Orange Condensate Pump

Part Number: FP3313
Aspen

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Silent+ Mini Orange Condensate Removal Pump

    The world’s no.1 mini pump becomes the quietest in its class! Featuring an acoustic damper, anti vibration tubing & bracket, the Silent+ Mini Orange is whisper quiet.

    12l/hr max. flow

    10m max. rec. head (flow rate 6L/h)

    19dB(A)



    Key Features:

    • Quietest in its class
    • Submersible secondary reservoir included
    • Plug & play

    Suitability:

    • Up to 16kW / 54,000Btu/h
    • Ducted units; Floor standing & Chassis units; High wall split systems
    • Perfect for - Smaller commercial and domestic units in quiet environments

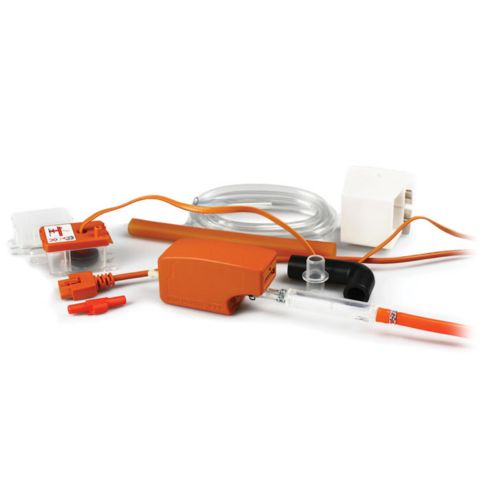

    In the Box:

    • Silent+ Mini Orange pump
    • 1.5m Plug & play power cable
    • Acoustic damper and 1m orange discharge tube with connector
    • Anti vibration bracket
    • Reservoir
    • Reservoir lid with 1.5m sensor cable
    • Submersible reservoir
    • Anti siphon device
    • Float & filter
    • 1.5m Suction tube 6mm ID
    • 220mm Orange inlet hose 14mm ID
    • 150mm Vinyl breather tube 6mm ID
    • Drain connector kit
    • Fixing kit
    • Install manual
  • BrandAspen
    Discharge tube6mm ID
    Fully pottedYes
    In the boxSilent+ Mini Orange pump, 1.5m Plug & play power cable, Acoustic damper and 1m orange discharge tube with connector, Anti vibration bracket, Reservoir, Reservoir lid with 1.5m sensor cable, Submersible reservoir, Anti siphon device, Float & filter, 1.5m Suction tube 6mm ID, 220mm Orange inlet hose 14mm ID, 150mm Vinyl breather tube 6mm ID, Drain connector kit, Fixing kit, Install manual
    IP ProtectionIP21

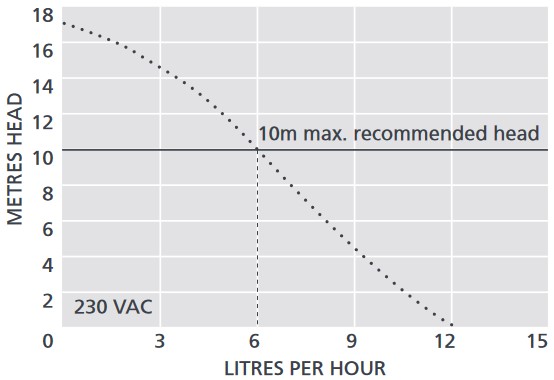

    Max. flow12L/h @ 0 head
    Max. rec. head10m
    Max. suction lift2m
    Max. unit ouput16kW / 54,000Btu/h
    Max. water temp40°C
    Power Supply230 VAC, 0.11A, 16W 50/60Hz
    RatedNon-continuous
    Safety switch3.0A Normally closed
    Self primingYes
    Sound level @ 1m19dB(A)
    Thermal protectionYes
    Weight0.25kg
  • Aspen Silent+ Mini Orange Condensate Pump
