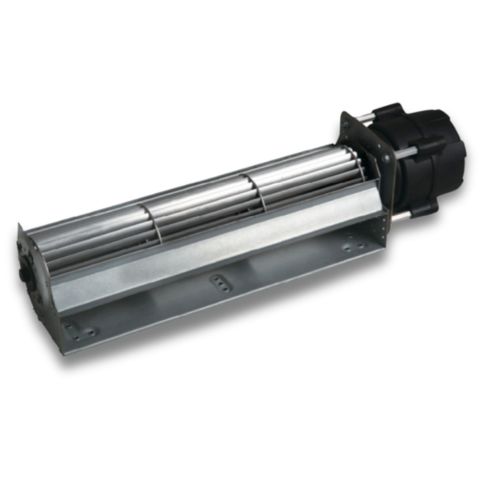

EC Cross Flow Fan - 60 x 360 - Fixed Speed 2400rpm - CFEC60360
EC Cross Flow Fan - 60 x 360 - Fixed Speed 2400rpm
Part Number: CFEC60360EC Cross Flow Fan - 60 x 360 - Fixed Speed 2400rpm
Part Number: CFEC60360Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Product Description
Henry Cross Flow EC Motor & Impellar - fixed speed configuration.
Specifications:
- Direct drive in 60mm diameter fan wheel
- Offered in 180,300,360 mm lengths
- High efficiency EC motor
- Operating temperature - 30°C to +50°C
- Long ball life bearings
- Protection class IP65
- Insulation Class B
- All materials conform to RoHS
- CE approved
Product Specifications
| Air Volume m³/hr | 342 |
| Amps | 0.18 |
| Brand | Henry |
| Fan Dimensions | 60D x 360L |
| Fan Wheel Diameter | 60mm |
| Frequency Hz | 50 |
| Henry Part Number | CFEC60-360 |
| Input Watts | 21.1 |
| Max static (Pa) | 25 |
| Motor Type | EC |
| Operating Temperature | -30°C to +50°C |
| RPM | 2400 |
| Speed | Fixed |
| Voltage | 230V |

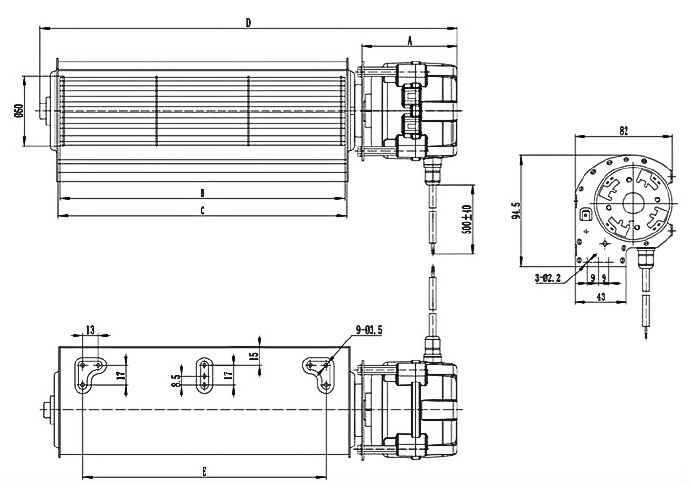

Dimension Data
A: 84mm B: 360mm C: 363mm D: 468mm E: 330.5mm
