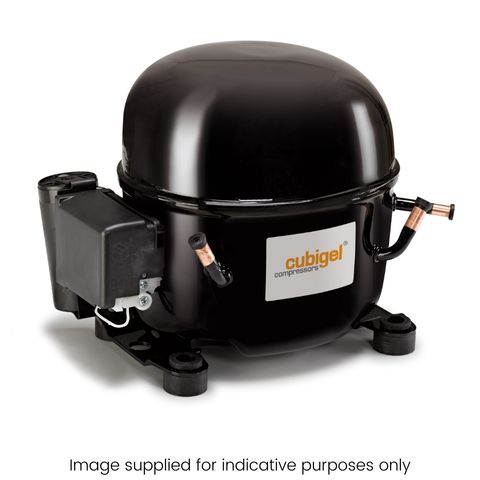

Cubigel Compressor R290 LBP 3/4 HP 18.4cc - NX18FBA

Cubigel Compressor R290 LBP 3/4 HP 18.4cc

Part Number: NX18FBA

Cubigel Compressor R290 LBP 3/4 HP 18.4cc

Part Number: NX18FBA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • R290 & R600a Cubigel Compressors

    Cubigel Compressors® aims to provide quality and environmentally friendly products using cutting-edge technology. For this reason the company offers the most extended range for high efficiency Green Cooling compressors for R290 & R600a which is the consequence of the development of natural refrigerants during the last 15 years.

    The increasing use of natural refrigerants in commercial applications such as propane (R290) is a priority, not only owing to the need to replace HFC refrigerants which have a high impact on the environment, but also because they are more efficient in terms of performance and energy consumption.

    From a strictly technical point of view the use of these hydrocarbon refrigerants is a great solution because of their physical and chemical properties.

    R290 is the best alternative due to the fact that R290 has no direct contribution to global warming (GWP = 3) and zero Ozone Depletion Potential (ODP = 0). For this reason it makes both HC refrigerants R290 and R600a even more attractive.

    R600a is recommended for home appliances and small business applications and is already being used to replace R134a. For its part R290 or propane is a good alternative for light commercial applications successfully replacing R134a, R404A & even R22 in certain cases.

  • General Specifications
    Nominal HP3/4 HP
    Displacement18.4 cm³
    FanFan Cooling
    Suction Line Connection9.7 mm
    Charge Line Connection9.7 mm
    Discharge Line Connection6.5 mm
    Connection TypeStub Tube
    Weight16.5 kg
    Oil Charge650 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current4.6 amps
    Locked Rotor Amps18 amps
    Main Winding Resistance3.5 Ω @ 25 ºC
    Start Winding Resistance7.35 Ω @ 25 ºC
  • Relay405151 or 104095
    Overload102200
    Start Capacitor104620
    Run Capacitor102654
  • cubigel_r290_r600_dd12
  • cubigel_r290_r600_wd9
  • R290
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)331470632814882101912461494
    Input (w)345401454504521552597639
    Current (Amps)1.741.982.212.432.512.652.863.06
    50Capacity (w)31645060678585098512071453
    Input (w)349411470526545580631679
    Current (Amps)1.752.022.282.532.622.783.023.25
    55Capacity (w)30043058275682095111701410
    Input (w)353421486548569608665719
    Current (Amps)1.772.062.352.632.732.913.193.45

    Note:

    Operating Conditions ASHRAE
    Based on +32ºC Liquid temp & +32ºC Suction gas
