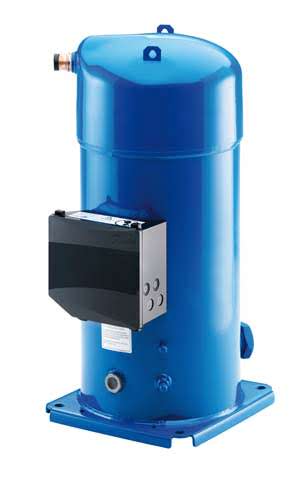

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Stub - SY380A4CAI

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Stub

Part Number: SY380A4CAI

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Stub

Part Number: SY380A4CAI

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss is a worldwide manufacturer of compressors and condensing units for refrigeration and HVAC applications. Danfoss have a wide range of high quality and innovative products that help your company to find the best possible energy efficient solution that respects the environment and reduces total life cycle costs.

    Danfoss have 40 years of experience within the development of hermetic compressors which places them amongst the global leaders in the industry. Today Danfoss operate from engineering and manufacturing facilities spanning across three continents.

    This SY380A4CAI model is supplied with a motor protection module fitted inside the compressor terminal box. The protection module provides protection against overheating, overloading & phase loss or reversal. The motor protector comprises of a control module connected to PTC sensors embedded in the motor windings. Once tripped the module has a 5 minute start delay providing the windings have cooled below the response temperature. The time delay can be cancelled by resetting the mains (L-N disconnected) for approximately 5 seconds (monitoring function is inactive for 20 seconds after shutdown).  The SY/SZ240 to SY/SZ380 compressors have an internal safety relief device that is set to open between the high & low side if the differential pressure between the suction & discharge surpasses 31 to 38 bar.

    The SY range of compressors benefit from the improved design features below to achieve the highest efficiency:

    • Gas circulation, motor cooling and oil behaviour are improved on light commercial platform models by a new patented motor cap design.

    • Part protection and assembly reduces internal leaks and increases life durability.

    • Improved part isolation reduces greatly acoustic levels

    • Gas intake design induces higher resistance to liquid slugging.

    • Multi-refrigerant (R134a, R22, R407C, R513A) optimized scroll profile and charged with PVE oil.

    Note: Crankcase heater is not supplied with compressor & should be purchased separately if required.


  • General Specifications
    Swept Volume531.2 cm³/rev
    Suction Line ConnectionStub Tube 2-1/8" ODF
    Discharge Line ConnectionStub Tube 1-3/8" ODF
    Weight158 kg
    Oil Charge8.4 L
    Oil Type320SZ P.O.E. Oil
    Electrical Specifications
    Voltage380-400V / 3 / 50Hz
    Motor Type3PH
    Max Continuous Current79 amps
    Locked Rotor Amps300
    Rated Load Amps56.4 amps
    Max Operating Amps0 amps
    Crankcase Heater 1230 volts 130 watts
    Line to Line Resistance0.41 OHMS (+/- 7% @ 25ºC)

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • Crankcase Heater7773122
  • danfoss_manuerope_scroll_c

    Units Dimensions (mm)
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    45Capacity (w)54907668268057296329103944114281134615
    Input (w)21732220632244422881230922338023948
    Current (Amps)37.6238.0138.4338.9839.2739.740.67
    50Capacity (w)5188863320765189166999023108958128570
    Input (w)23969242672461925028252292550326049
    Current (Amps)40.4740.8741.941.942.242.6543.66
    55Capacity (w)59691723098682393884103416122277
    Input (w)267622707627452276382789528412
    Current (Amps)44.1644.6145.1645.4645.9146.91


    11.1k Superheat, 8.3K Subcooling, 35°C Ambient
