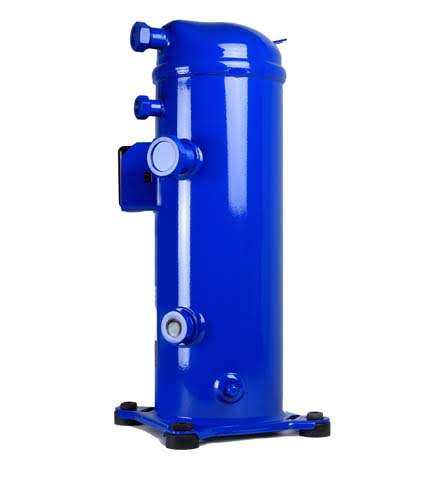

Danfoss Scroll Compressor 3PH R404A Low Temp POE Rotalock - LLZ015T4LQ9

Danfoss Scroll Compressor 3PH R404A Low Temp POE Rotalock

Part Number: LLZ015T4LQ9

Danfoss Scroll Compressor 3PH R404A Low Temp POE Rotalock

Part Number: LLZ015T4LQ9

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • MLZ / LLZ - Scroll Compressors for Refrigeration

    MLZ and LLZ scroll compressors are dedicated to commercial and light commercial refrigeration applications with refrigerants R134a,
    R404A / R507A, R22, R407A. Both brazed and rotolock connections are available for most of the compressors.

    MLZ: medium-temperature scroll compressors
    R404 / R507A, R407A / F, R134a, R448A, R449A, R452A
    LLZ: low-temperature scroll available with economizer line
    (R404A, R507A, R452A).


    • High efficiency motor
    • Optimised pressure ration for refrigeration applications
    • Optimised scroll design
    • HOOP overload protection
    • Rotolock or braze (stub tube) connections
    • Optional sound jacket attenuates sound levels
    • Multi-refrigerant scrolls save on inventory
    • Suitable for transport of refrigerated goods
    • LLZ models only - Vapour injection available with optional kit increases LLZ efficiency and cooling capacity


    Note: Rotalock service valves & crankcase heaters are not supplied with compressor & should be purchased separately if required.

    This LLZ015T4LQ9 compressor is the replacement compressor for the Danfoss Optyma Slim OPLPHE084LLW10E condensing unit.


  • General Specifications
    Nominal Cooling Capacity3.5 kW
    Swept Volume83.5 cm³ cm³
    Suction Line ConnectionRotoLock 1-1/4"
    Discharge Line Connection1" RotoLock Nut with Solder Spud
    Weight42 kg
    Oil Charge1.62 L
    Oil TypePVE Oil 160HV
    ElectricsScrew connectors 10-32 UNF x 9.5
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current15 amps
    Locked Rotor Amps88.5 amps
    Rated Load Amps9.6 amps
    Crankcase Heater 165watt, 230V Belt Type

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • Crankcase Heater120Z5040
  • No Data
    No Data
