Enthalpy Semi Cond Unit - 3Ø 0.75HP - 2JES07Y1003

Enthalpy Semi Cond Unit - 3Ø 0.75HP

Part Number: 2JES07Y1003

Enthalpy Semi Cond Unit - 3Ø 0.75HP

Part Number: 2JES07Y1003

Compare

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

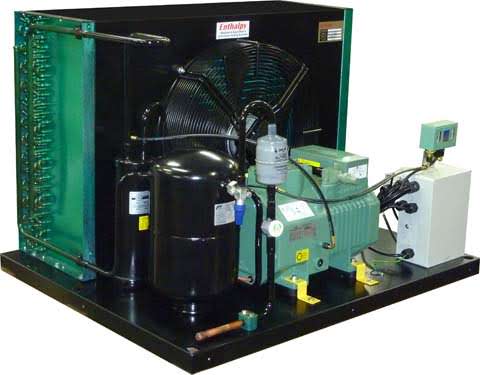

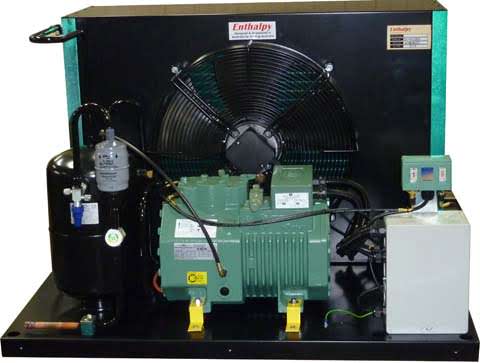

Enthalpy Semi-Hermetic Flat Base Condensing Units
Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.
The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.
The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.
Standard Fitted Features:
• Bitzer Ecoline Compressor with Oil Sight Glass
• Crankcase Heater
• OLC-K1 Oil Level Monitor (4 Cylinder Compressors)
• Service Shut Off Valves
• HP/LP Control
• Gomax Flexible Control Hoses
• Liquid Line Drier & Sight Glass
• Oil Separator (Pre-charged with POE Oil)
• Liquid Receiver
• Galvanised Black Powder Coated Unit Base
• Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
• Discharge Vibration Eliminator
• ebmpapst Condenser Fans – Single Phase
• Saginomiya Condenser Fan Speed Controller
• 3PH Contactor & Electronic Motor Protection Relay
• Phase Loss & Phase Imbalance Protection
• Pre - Wired Back to Junction Box
• Nitrogen Holding Charge
Options:
• Suction Accumulator (factory fitted) (Not available for 2JES07Y1003)

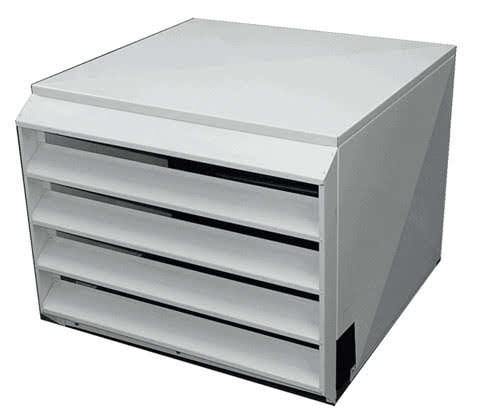

• Unit Weatherproof Cover (knockdown form)
Condensing Unit Specifications
Weight 92 Kg
Liquid Line Connection 1/2 "
Suction Line Connection 5/8 "
Receiver Capacity R404A 4.29 Kg
Compressor
Nominal HP 0.75 HP
Max Continuous Current 3.7 Amps
Voltage 380-400V / 3 / 50Hz
Motor Type DOL
Crankcase Heater 230V / 1 / 50Hz 60w
Fan Motors
Total FLA 0.58 Amps
Quantity 1
Diameter 350 mm
Voltage 230V / 1 / 50Hz

Compressor Model	2JES07Y
Compressor Contactor	MC12B240V
Compressor Electronic Overload	GMP223P5A
Circuit Breaker Control Circuit	PLSMD10
Oil Separator (Internal Float)	EOS1004L
Liquid Receiver	1300134B
Receiver Outlet Valve	R051FA8DS
Receiver Outlet Gasket	020002800
Unit Electrical Box	AIRENTENCL
Liquid Line Drier / Sight Glass Combo	CSG084S
Unit Start Delay Timer	ICM105
Dual Pressure Control	DNSD306X
Condenser Fan Model (ebm)	S4E350AN0248
Fan Speed Controller	RGEZ1N45MFQ1

R404A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	560	809	1097	1427	1799	2217	2682	3191	3745	4342
32	KTD	3.02	4.02	5.11	6.31	7.61	9.04	10.59	12.27	14.07	16.01
38	Refrigeration Capacity (w)	452	681	945	1246	1588	1970	2393	2857	3360	3901
38	KTD	2.63	3.62	4.69	5.85	7.11	8.48	9.96	11.56	13.27	15.09
43	Refrigeration Capacity (w)	367	578	822	1101	1415	1768	2158	2583	3043
43	KTD	2.31	3.28	4.33	5.47	6.7	8.02	9.45	10.98	12.61

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R507

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	560	809	1097	1427	1799	2217	2682	3191	3745	4342
32	KTD	3.02	4.02	5.11	6.31	7.61	9.04	10.59	12.27	14.07	16.01
38	Refrigeration Capacity (w)	452	681	945	1246	1588	1970	2393	2857	3360	3901
38	KTD	2.63	3.62	4.69	5.85	7.11	8.48	9.96	11.56	13.27	15.09
43	Refrigeration Capacity (w)	367	578	822	1101	1415	1768	2158	2583	3043
43	KTD	2.31	3.28	4.33	5.47	6.7	8.02	9.45	10.98	12.61

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R134A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-25	-20	-15	-10	-5	0	5	10
32	Refrigeration Capacity (w)	577	839	1144	1498	1904	2369	2892	3477
32	KTD	2.99	4.01	5.16	6.45	7.88	9.48	11.25	13.21
38	Refrigeration Capacity (w)	500	748	1038	1373	1758	2197	2690	3241
38	KTD	2.76	3.79	4.93	6.19	7.58	9.12	10.83	12.7
43	Refrigeration Capacity (w)	443	680	956	1276	1643	2060	2529	3050
43	KTD	2.59	3.62	4.75	5.99	7.35	8.85	10.49	12.29

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R449A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	408	629	893	1209	1580	2007	2490	3034	3636	4295
32	KTD	2.23	3.14	4.18	5.39	6.74	8.26	9.93	11.76	13.76	15.91
38	Refrigeration Capacity (w)	329	528	769	1058	1396	1786	2228	2724	3275	3876
38	KTD	1.97	2.82	3.81	4.95	6.25	7.7	9.3	11.05	12.95	15
43	Refrigeration Capacity (w)	249	434	657	924	1237	1599	2011	2472	2982	3544
43	KTD	1.71	2.51	3.47	4.57	5.82	7.22	8.78	10.47	12.3	14.29

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R448A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-40	-35	-30	-25	-20	-15	-10	-5	0	5
32	Refrigeration Capacity (w)	406	627	893	1209	1581	2009	2494	3039	3643	4303
32	KTD	2.25	3.17	4.23	5.45	6.82	8.36	10.06	11.92	13.94	16.12
38	Refrigeration Capacity (w)	327	526	769	1058	1398	1789	2233	2731	3283	3885
38	KTD	1.99	2.84	3.85	5.01	6.32	7.79	9.42	11.19	13.12	15.2
43	Refrigeration Capacity (w)		431	656	924	1239	1601	2015	2478	2990	3554
43	KTD		2.54	3.51	4.63	5.89	7.31	8.89	10.61	12.47	14.49

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

R513A

Ambient (°C)		Evaporating Temperature (°C)
Ambient (°C)		-25	-20	-15	-10	-5	0	5	10
32	Refrigeration Capacity (w)	661	930	1242	1599	2007	2468	2983	3553
32	KTD	3.32	4.39	5.57	6.88	8.32	9.92	11.67	13.58
38	Refrigeration Capacity (w)	578	832	1126	1462	1845	2277	2758	3290
38	KTD	3.08	4.14	5.31	6.58	7.98	9.51	11.18	13
43	Refrigeration Capacity (w)	517	757	1036	1354	1716	2123	2576	3075
43	KTD	2.9	3.96	5.11	6.35	7.71	9.19	10.79	12.53

Note:

Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.

Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.

Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.

Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

Notes for Commissioning:
●
Set Dual Pressure Control to suit application.
●
Set Fan Speed Control to suit application (ie: R134a).
●
Adjust Motor Current Overload to suit application.
●
Unit delivered with 1200 kpa nitrogen holding charge.
●
Remove/adjust transport protection (Bitzer comps only).
●
Check integrity of electrical connections/terminations.
●
Check integrity of fixing screws & bolts etc.
