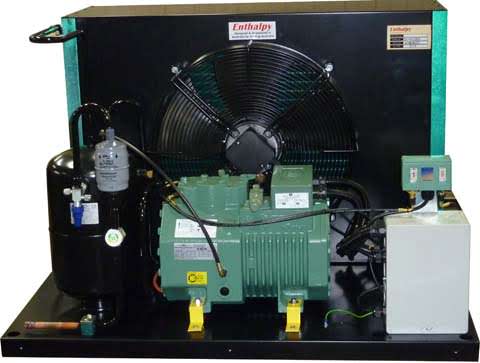

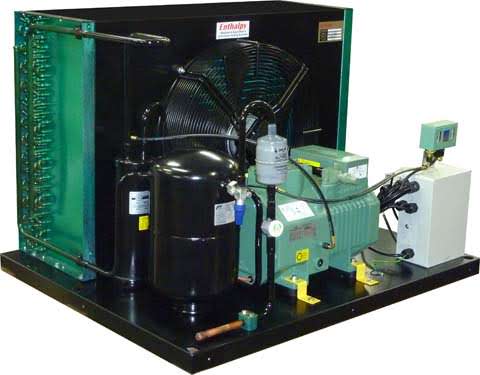

Enthalpy Semi Cond Unit - 3Ø 4HP - 2CES4Y5203

Enthalpy Semi Cond Unit - 3Ø 4HP

Part Number: 2CES4Y5203

Enthalpy Semi Cond Unit - 3Ø 4HP

Part Number: 2CES4Y5203
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Enthalpy Semi Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Bitzer Ecoline Compressor with Oil Sight Glass
    • Crankcase Heater
    • OLC-K1 Oil Level Monitor (4 Cylinder Compressors)
    • Service Shut Off Valves
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil Separator (Pre-charged with POE Oil)
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
    • Discharge Vibration Eliminator
    • ebmpapst Condenser Fans – Single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Pre - Wired Back to Junction Box
    • Nitrogen Holding Charge

    Options:
    • Suction Accumulator (factory fitted) (Not available for 2JES07Y1003)
    • Unit Weatherproof Cover (knockdown form)

  • Condensing Unit Specifications
    Weight180 Kg
    Liquid Line Connection5/8 "
    Suction Line Connection7/8 "
    Receiver Capacity R404A8.1 Kg
    Compressor
    Nominal HP4 HP
    Max Continuous Current10 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater230V / 1 / 50Hz 120w
    Fan Motors
    Total FLA3 Amps
    Quantity1
    Diameter500 mm
    Voltage230V / 1 / 50Hz
  • Compressor Model2CES4Y
    Compressor ContactorMC12B240V
    Compressor Electronic OverloadGMP223P22A
    Circuit Breaker Control CircuitPLSMD10
    Oil Separator (Internal Float)EOS1005
    Liquid Receiver1320315A
    Receiver Outlet ValveR051FB2DS
    Receiver Outlet Gasket020002800
    Unit Electrical BoxAIRENTENCL
    Liquid Line Drier / Sight Glass ComboCSG165S
    Unit Start Delay TimerICM105
    Dual Pressure ControlDNSD306X
    Condenser Fan Model (ebm)S4E500AM0301
    Fan Speed ControllerRGEZ1Q45MFQ1
  • Enthalpy_Semi-Herm-C
  • FBTDBIT1FAN(010114)
  • R404A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)2366320441695267650878909418110921290414847
    KTD3.344.295.346.527.829.2410.7912.4614.2416.13
    38Refrigeration Capacity (w)205928263708471058377090847399821160713343
    KTD3.0945.016.137.368.710.1611.7213.3715.12
    43Refrigeration Capacity (w)1793250033114231526464107670904010511
    KTD2.863.734.75.776.958.229.611.0712.62

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)2366320441695267650878909418110921290414847
    KTD3.344.295.346.527.829.2410.7912.4614.2416.13
    38Refrigeration Capacity (w)205928263708471058377090847399821160713343
    KTD3.0945.016.137.368.710.1611.7213.3715.12
    43Refrigeration Capacity (w)1793250033114231526464107670904010511
    KTD2.863.734.75.776.958.229.611.0712.62

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)2605346744805658701085511028412216
    KTD3.574.525.626.878.289.8611.6113.56
    38Refrigeration Capacity (w)237531804127522764907927954111339
    KTD3.394.315.376.577.939.4511.1312.98
    43Refrigeration Capacity (w)218729463838487360627411892810614
    KTD3.244.135.166.327.639.0910.7112.49

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)1850259134784526574871588768105881262714889
    KTD2.73.564.575.737.048.5210.1712.0114.0216.23
    38Refrigeration Capacity (w)161622973116408652206532803197241162013719
    KTD2.493.324.295.416.688.119.7111.4713.415.52
    43Refrigeration Capacity (w)142620572819372547876015741990071077912738
    KTD2.313.114.065.146.387.769.31112.8714.9

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R448A
    Ambient (°C)Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32Refrigeration Capacity (w)1846258934804531575871738790106171266314933
    KTD2.733.64.625.87.138.6310.3112.1714.2216.46
    38Refrigeration Capacity (w)161322963118409252326549805497551165813764
    KTD2.513.364.345.486.778.229.8411.6313.5915.74
    43Refrigeration Capacity (w)142320572822373247986032744390371081712782
    KTD2.333.154.15.216.467.869.4311.1613.0515.11

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    32Refrigeration Capacity (w)2882377148055993734788731057412457
    KTD3.94.896.017.288.710.2712.0113.9
    38Refrigeration Capacity (w)262334484408551067648176974811485
    KTD3.74.655.736.948.39.811.4513.25
    43Refrigeration Capacity (w)240931824080511162827598906310677
    KTD3.534.445.486.667.969.410.9712.69

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is factory set for R404A or similar & should be adjusted to suit other refrigerant types at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
  • Notes for Commissioning:

    Set Dual Pressure Control to suit application.
    Set Fan Speed Control to suit application (ie: R134a).
    Adjust Motor Current Overload to suit application.
    Unit delivered with 1200 kpa nitrogen holding charge.
    Remove/adjust transport protection (Bitzer comps only).
    Check integrity of electrical connections/terminations.
    Check integrity of fixing screws & bolts etc.
