Enthalpy Semi Cond Unit - 3Ø 5.5HP

Part Number: 4EES6Y8603

Enthalpy Semi Cond Unit - 3Ø 5.5HP

Part Number: 4EES6Y8603
Enthalpy

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

Enthalpy Semi Cond Unit - 3Ø 5.5HP
Enthalpy Semi Cond Unit - 3Ø 5.5HP

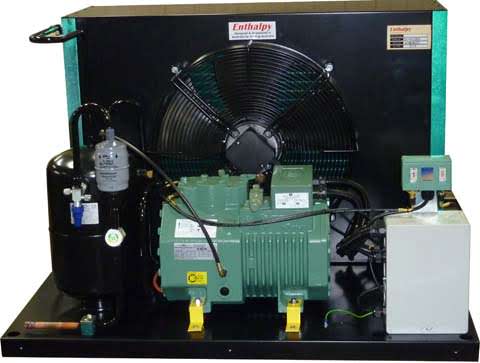

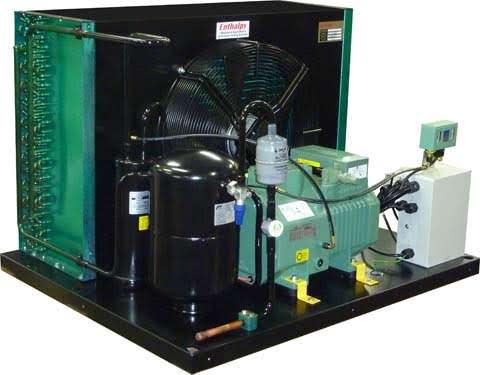

  • Enthalpy Semi-Hermetic Flat Base Condensing Units

    Airefrig Australia’s range of Enthalpy condensing units is one of the highest quality units available for the Australian market. The condensing units have many standard fitted features, previously being options.

    The condensing units are rated to 43 ambient and are fitted with a fan speed controller. This means they can be applied in the hot climate of far North Queensland to the cooler areas of Tasmania.

    The Enthalpy condensing unit is the most complete condensing unit available saving time in installation for contractors.

    Standard Fitted Features:

    • Bitzer Ecoline Compressor with Oil Sight Glass
    • Crankcase Heater
    • OLC-K1 Oil Level Monitor (4 Cylinder Compressors)
    • Service Shut Off Valves
    • HP/LP Control
    • Gomax Flexible Control Hoses
    • Liquid Line Drier & Sight Glass
    • Oil Separator (Pre-charged with POE Oil)
    • Liquid Receiver
    • Galvanised Black Powder Coated Unit Base
    • Supercoat Condenser Treatment (5000 Hour Salt Spray Test)
    • Discharge Vibration Eliminator
    • ebmpapst Condenser Fans – Single Phase
    • Saginomiya Condenser Fan Speed Controller
    • 3PH Contactor & Electronic Motor Protection Relay
    • Phase Loss & Phase Imbalance Protection
    • Pre - Wired Back to Junction Box
    • Nitrogen Holding Charge

    Options:
    • Suction Accumulator (factory fitted) (Not available for 2JES07Y1003)
    • Unit Weatherproof Cover (knockdown form)

  • Condensing Unit Specifications
    Weight315 Kg
    Liquid Line Connection5/8 "
    Suction Line Connection1-1/8 "
    Receiver Capacity R404A12 Kg
    Compressor
    Nominal HP5.5 HP
    Max Continuous Current13.6 Amps
    Voltage380-400V / 3 / 50Hz
    Motor TypeDOL
    Crankcase Heater230V / 1 / 50Hz 120w
    Fan Motors
    Total FLA3.1 Amps
    Quantity2
    Diameter450 mm
    Voltage230V / 1 / 50Hz
  • Compressor Model4EES6Y
    Compressor ContactorMC22B240V
    Compressor Electronic OverloadGMP223P22A
    Circuit Breaker Control CircuitPLSMD10
    Circuit Breaker Condenser FansPLSMD16
    Oil Separator (Internal Float)EOS1007
    Liquid Receiver1320620A
    Receiver Outlet ValveR051FB2DS
    Receiver Outlet Gasket020002800
    Unit Electrical BoxAIR50650
    Liquid Line Drier / Sight Glass ComboCSG165S
    Unit Start Delay TimerICM105
    Compressor Oil Monitor34733403
    Dual Pressure ControlDNSD306X
    Condenser Fan Model (ebm)S4E450AU0337
    Fan Speed ControllerRGEZ1Q45MFQ1
  • Enthalpy_Semi-Herm-D
  • FBTDBIT2FAN(160216)FBTDBIT2FAN(010114)
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32319642705548704387671072912931153751805720960
    3828163795495863177881965811647138481625318846
    43249533934460570571368757105671256514739

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    32319642705548704387671072912931153751805720960
    3828163795495863177881965811647138481625318846
    43249533934460570571368757105671256514739

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    3237434889624678359672117741415416822
    3833944465573272158928108861310115580
    4331054113530767028313101531223114554

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    4 Cylinder Compressors are supplied with one head prepared for capacity control - Contact Airefrig Australia for further information.
    Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R449A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -40-35-30-25-20-15-10-505
    3224843509474562107927991312193147791768920935
    3821513090422755817171901811138135461625419270
    4318852753380850696555828210268125241505917876

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.
    R513A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -25-20-15-10-50510
    32411252976686829410136122251456917177
    3837214821611076019307112381340315805
    4333974427563170258618104191243414666

    Note:

    Nominal ratings should be used as a guide, based on 20 degree Celsius return vapour and inherent liquid subcooling.
    Fan speed controller will require to be adjusted to suit R134a refrigerant at time of commissioning.
    Fan speed controller is set for continuous running @ low speed, select fan OFF option at low speed in low ambient applications to prevent over condensing.
    Requires additional cooling &/or return vapour limitations - Contact Airefrig Australia for further information.

  • Notes for Commissioning:

    ●
    Set Dual Pressure Control to suit application.
    ●
    Set Fan Speed Control to suit application (ie: R134a).
    ●
    Adjust Motor Current Overload to suit application.
    ●
    Unit delivered with 1200 kpa nitrogen holding charge.
    ●
    Remove/adjust transport protection (Bitzer comps only).
    ●
    Check integrity of electrical connections/terminations.
    ●
    Check integrity of fixing screws & bolts etc.
