Bitzer Mini-Rack 4 x 4EES6Y 3PH - MINI44EES6
Bitzer Mini-Rack 4 x 4EES6Y 3PH
Part Number: MINI44EES6Bitzer Mini-Rack 4 x 4EES6Y 3PH
Part Number: MINI44EES6Sign in to your Aire-Biz account to view pricing and stock levels.
Sign in Not an Airefrig customer? Complete our online account application form here to apply for a credit account.
Product Description

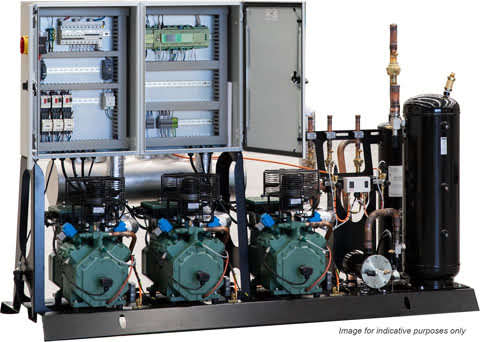

SEMI HERMETIC RECIPROCATING COMPRESSORS - MINI-RACKBITZER's multiple compressor mini racks offer high flexibility and a variety of capacity range on a compact platform. They are designed and manufactured to offer a reduced installation time and minimum maintenance time made possible through easy service access and isolation points for all major components .
STANDARD FEATURES
- Two, three or four compressor racks
- Suction gas header with liquid floodback protection
- Suction demountable filters
- Fully insulated suction lines
- Vertical liquid receiver
- Demountable liquid line drier, sight glass assembly
- High efficient oil Separator with oil level sight glass
- Oil filter assembly
- Non adjustable high pressure safety switch per compressor
- Oil return sight glass
- Anti vibration mounting pads
- Manufactured under ISO 9001 quality control
- Fully wired switch board and controller
OPTIONS
- CRII capacity control
- CM-RC-01 Module
- Compressor head fan
- Adjustable compressor safety switch
Product Specifications
| Brand | Bitzer |
| Crankcase Heater | 480W |
| Discharge Line Connection | 1-5/8" |
| Displacement m3/h | 90.88 |
| Liquid Line Connection | 4 x 7/8" |
| Max. Operating Current | 54.4 amps |
| Max. Power Consumption | 30.4kW |
| Motor Connection Voltage | 380-420VY/3/50Hz |
| Number of Compressors | 4 |
| Receiver Inlet Connection | 1-5/8" |
| Suction Line Connection | 4 x 1-3/8" |
| Weight | 546kg |
Notes:
Use E10105 for Electrical
Dimension Data
A: 2100mm B: 1488mm C: 800mm D: 360mm E: 1380mm F: 30mm G: 740mm
