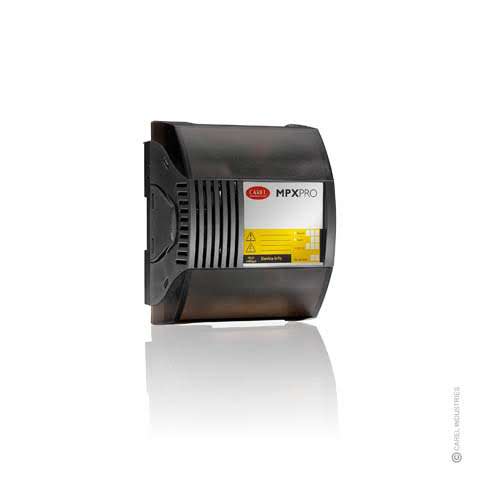

MPXPRO MASTER 5xRELAY;EEV DRIVER;U/CAP

Part Number: MX30M25HO0

Part Number: MX30M25HO0

Compare

Sign in to your Aire-Biz account to view pricing and stock levels.

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

MPXPRO is a tool used for complete management of a channelled refrigerating bench or of a refrigerating cell.
Compact and flexible, paying particular attention to energy saving and easiness in use, allows you to manage electronic expansion valves (both Carel and PWM) using ultracap technology to ensure closure in case of lack of voltage.
Besides traditional lighting management, electric heater defrost, fans, the main functions are:
- Smooth line: modulation of the bench refrigerating capacity to optimize the bench temperature
- Modulation of the demisters resistances based on the environmental temperature and humidity
- Modulation of the fans speed
- Synchronisation of the evaporating units (max 6) for defrost, probes sharing and serial connections
- Advanced hot gas defrost
- Intelligent defrost: different functions to reduce the number and duration of the defrosts

The entire assembly accompanied by serial communication RS485 (Carel and Modbus)to be integrated in monitoring systems and to be able to interact with various plug in PlantVisorPRO or PlantWatchPRO that allow status monitoring, troubleshooting and efficiency maximization.

Application	Case Control
Brand	Carel
Buzzer	No
Display	Remote Display (not included)
Inputs	Multiple Configurations. NTC, PT1000, 0-5v, 4-20mA
IP Rating	IP00
Mounting Type	DIN Rail
Network Compatible	Built in RS485
Number of Output Relays	5
Output Designation	Comp, Defrost, Fan, Light, Alarm
Power Supply	230 Vac
Programmable Alarm Output available	Yes
Temperature Range (probe dependant)	-50T90 °C
Termination Type	Removeable Plug Connectors
Type	Case Temperature Control
Valves able to used	1 x Carel EEV
