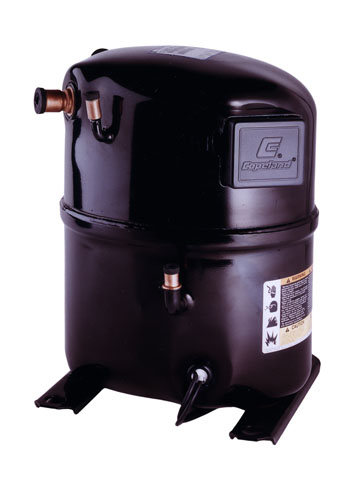

Copeland Compressor 1PH POE Oil Stub Tube - CS14K6EPFJ545

Copeland Compressor 1PH POE Oil Stub Tube

Part Number: CS14K6EPFJ545

Copeland Compressor 1PH POE Oil Stub Tube

Part Number: CS14K6EPFJ545
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • CS14K6E-PFJ-545 COPELAND CS SERIES RECIPROCATING HERMETIC COMPRESSORS



    The Copeland CS hermetic compressors are designed for commercial refrigeration applications. They feature a “low-side” gas management system. The steel shell contains cool, low pressure suction gas that surrounds and cools the electric motor and mechanical compressor parts, resulting in lower motor and discharge gas temperatures.

    Many years of experience in the research, design, and manufacturing of compressors are culminated in the CS series compressors outstanding features such as its wide range of:

    • Model Selections

    • Electrical Choices

    • Approved Operating Conditions

    • Refrigerant Options - R134a, R404A and R507

    These attributes are indicators of this compressor's versatility.



    Optimized Compressor Design

    Based on its advanced reciprocating design, Copeland’s CS line was built with greater reliability and higher efficiency levels in mind. This new generation of hermetic compressors has been optimized with enhanced features that improve performance and durability in any condition: strong low-voltage start capability, decreased re-expansion volume for higher efficiency, and reduced bearing load for longer life.

    These compressors have also been modified for use with HFC-compatible polyol ester oils. Utilizing POE oil solves miscibility and solubility issues associated with traditional mineral oils. A redesigned wrist pin improves oil flow at high-compression ratios, further safeguarding the life of the compressor.



  • General Specifications
    Nominal HP2 HP
    Displacement48.6 cm³/r
    Suction Line Connection3/4"
    Discharge Line Connection3/8"
    Connection Typestub tube
    Weight32 kg
    Oil Charge1.27 L
    Oil TypePOE
    Oil Sight GlassNo
    Electrical Specifications
    Motor Type1 PH
    Max Continuous Current6.6 amps
    Locked Rotor Amps28 amps
    Rated Load Amps4.7 amps
    Crankcase Heater240V 40W Wrap Around
    Main Winding Resistance1.4 OHMS (+/- 7%)
    Start Winding Resistance2.64 OHMS (+/- 7%)
  • Crankcase Heater018008800
    Relay040000160
    Run Capacitor014003711
    Start Capacitor014000851
  • copeland_cs_01

    Units Dimensions (mm)
    A348
  • copeland_CSR
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -30-25-20-15-10-50
    45Capacity (w)924136019302590335041504983
    Input (w)912111013201530172018902040
    Current (Amps)5.59247.58.59.510.411.2
    50Capacity (w)758111516202205286536004350
    Input (w)870108013001530174019302097
    Current (Amps)5.36.37.38.59.610.611.6
    55Capacity (w)87013051815238530003667
    Input (w)103012601500174019502150
    Current (Amps)67.28.49.610.711.9

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5051012.8
    45Capacity (w)1140168023803240419053606060
    Input (w)83196710951211129913671403
    Current (Amps)6.911407.57.98.28.58.6
    50Capacity (w)920144020902890378048705530
    Input (w)77793010841222133414311483
    Current (Amps)6.577.57.98.28.68.8
    55Capacity (w)118017902520332043304940
    Input (w)89310661231136014731534
    Current (Amps)6.87.37.88.38.79

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
