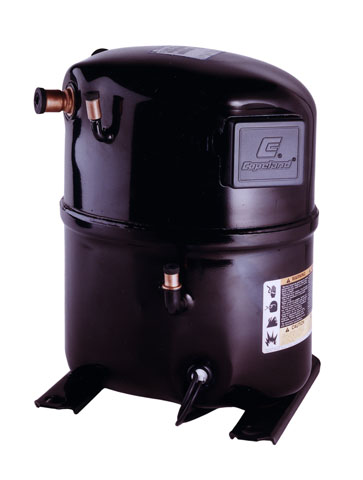

Copeland Compressor 3PH POE Oil Rotalocks Included

Part Number: CS33K6ETFD595

Copeland Compressor 3PH POE Oil Rotalocks Included

Part Number: CS33K6ETFD595
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • CS33K6E-TFD-595 COPELAND CS SERIES RECIPROCATING HERMETIC COMPRESSORS



    The Copeland CS hermetic compressors are designed for commercial refrigeration applications. They feature a “low-side” gas management system. The steel shell contains cool, low pressure suction gas that surrounds and cools the electric motor and mechanical compressor parts, resulting in lower motor and discharge gas temperatures.

    Many years of experience in the research, design, and manufacturing of compressors are culminated in the CS series compressors outstanding features such as its wide range of:

    • Model Selections

    • Electrical Choices

    • Approved Operating Conditions

    • Refrigerant Options - R134a, R404A and R507

    These attributes are indicators of this compressor's versatility.



    Optimized Compressor Design

    Based on its advanced reciprocating design, Copeland’s CS line was built with greater reliability and higher efficiency levels in mind. This new generation of hermetic compressors has been optimized with enhanced features that improve performance and durability in any condition: strong low-voltage start capability, decreased re-expansion volume for higher efficiency, and reduced bearing load for longer life.

    These compressors have also been modified for use with HFC-compatible polyol ester oils. Utilizing POE oil solves miscibility and solubility issues associated with traditional mineral oils. A redesigned wrist pin improves oil flow at high-compression ratios, further safeguarding the life of the compressor.



  • General Specifications
    Nominal HP4 HP
    Displacement106.2 m³/Hr
    Suction Line Connection1-1/4" 12UNF x 7/8 ODF
    Discharge Line Connection1" 14UNF 1/2 ODF
    Connection Typerotalock
    Weight35 kg
    Oil Charge1.5 L
    Oil TypePOE
    Oil Sight GlassYes
    Electrical Specifications
    Motor Type3PH
    Max Continuous Current13.8 amps
    Locked Rotor Amps45 amps
    Rated Load Amps9.9 amps
    Crankcase Heater240V 40W Wrap Around
    Line to Line Resistance3.41 OHMS (+/- 7%)
  • Suction Service ValveR052FB7DS
    Suction Service Gasket020002802
    Discharge Service Valve2605081620
    Discharge Service Gasket020002800
    ContactorMC12B240V
    Thermal OverloadMT323K13
    Crankcase Heater018008800
  • copeland_cs_02

    Units Dimensions (mm)
    A386
  • copeland_3PH_03
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -30-25-20-15-10-50
    45Capacity (w)20403000415055507250930011717
    Input (w)1780228028303380389043204670
    Current (Amps)5.120406.77.68.59.310
    50Capacity (w)16452420340046506150800010250
    Input (w)1630218027703360393044304863
    Current (Amps)4.95.76.67.68.69.510.3
    55Capacity (w)192527153750505067508667
    Input (w)203026603320395045205003
    Current (Amps)5.46.47.58.69.710.5

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5051012.8
    45Capacity (w)305041405650746093601139012570
    Input (w)1788206823862697295231283211
    Current (Amps)6.5305077.37.57.77.9
    50Capacity (w)264036505080679086101056011690
    Input (w)1728204023912740303432623374
    Current (Amps)6.46.7697.37.67.88
    55Capacity (w)3140447061007840971010800
    Input (w)198123732765311133863532
    Current (Amps)6.56.97.37.67.98.1

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
