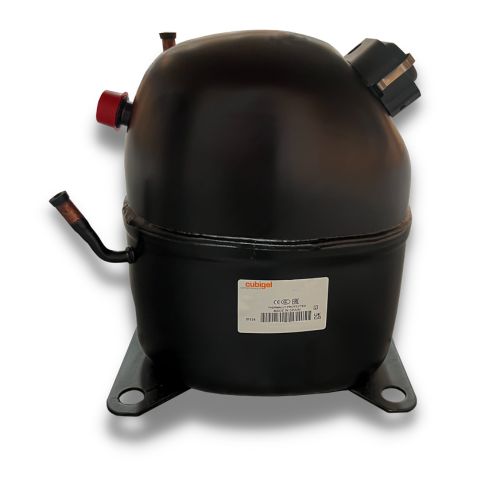

Cubigel Compressor R134a HMBP 3/4 HP 25.93cc Fan Cooling - GS26TB-V

Cubigel Compressor R134a HMBP 3/4 HP 25.93cc Fan Cooling

Part Number: GS26TB-V

Cubigel Compressor R134a HMBP 3/4 HP 25.93cc Fan Cooling

Part Number: GS26TB-V
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP3/4 hp
    Displacement25.9 cm³
    FanFan Cooled
    Suction Line Connection5/8 SAE flare
    Charge Line Connection9.7 mm
    Discharge Line Connection8 mm
    Connection Typestub tube
    Weight22.7 kg
    Oil Charge887 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSIR
    Max Continuous Current8.7 amps
    Locked Rotor Amps32 amps
    Rated Load Amps6.3 amps
    Main Winding Resistance2.39 Ω @ 25 ºC
    Start Winding Resistance16 Ω @ 25 ºC
  • Start Capacitor100690
    Relay100479
    Overload101405
  • cubigel_d13
  • R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    45Capacity (w)445707101413671764220626953227
    Input (w)410494575655732806879949
    Current (Amps)4.154.374.64.855.115.385.665.95
    50Capacity (w)36960889312251600202024862998
    Input (w)4004955876777658519341015
    Current (Amps)4.124.374.644.925.235.555.896.23
    55Capacity (w)29150977210821435183522792768
    Input (w)3904965997007998959891081
    Current (Amps)4.14.374.6755.355.736.126.53

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
