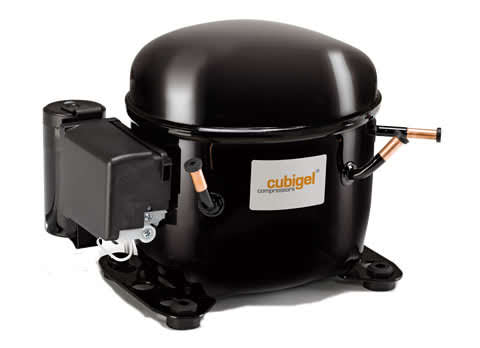

Cubigel Compressor R134a LBP 1/8 hp 4.56cc HE Static Cooling - GLY45AAA

Cubigel Compressor R134a LBP 1/8 hp 4.56cc HE Static Cooling

Part Number: GLY45AAA

Cubigel Compressor R134a LBP 1/8 hp 4.56cc HE Static Cooling

Part Number: GLY45AAA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/8 hp
    Displacement4.56 cm³
    FanStatic Cooling
    Suction Line Connection6.5 mm
    Charge Line Connection6.5 mm
    Discharge Line Connection4.9 mm
    Connection Typestub tube
    Weight8.7 kg
    Oil Charge215 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeRSIR
    Max Continuous Current1 amps
    Locked Rotor Amps4.5 amps
    Rated Load Amps0.65 amps
    Main Winding Resistance25.25 Ω @ 25 ºC
    Start Winding Resistance24.1 Ω @ 25 ºC
  • Relay128096
    Overload102287
  • cubigel_d4
  • R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -35-30-25-23.3-20-15-10
    45Capacity (w)6691122135160205256
    Input (w)6575869098112126
    Current (Amps)0.550.590.630.640.670.720.78
    50Capacity (w)6286116128152197247
    Input (w)64758792100114130
    Current (Amps)0.550.590.630.640.680.730.8
    55Capacity (w)5780109121145188237
    Input (w)64768893102117133
    Current (Amps)0.550.590.630.650.680.740.81

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
