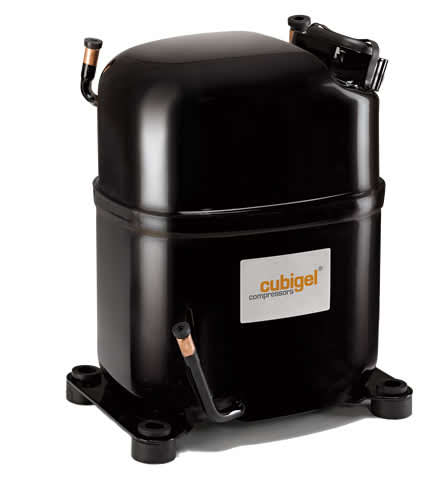

Cubigel Compressor R404A HMBP 1-3/8 HP 25.93cc Fan Cooling - MS26TB-T

Cubigel Compressor R404A HMBP 1-3/8 HP 25.93cc Fan Cooling

Part Number: MS26TB-T

Cubigel Compressor R404A HMBP 1-3/8 HP 25.93cc Fan Cooling

Part Number: MS26TB-T
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1-1/3 hp
    Displacement25.9 cm³
    FanFan Cooled
    Suction Line Connection12.7 mm
    Charge Line Connection9.7 mm
    Discharge Line Connection8 mm
    Connection Typestub tube
    Weight22.1 kg
    Oil Charge887 ml
    Oil TypeISO VG 46 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current11.5 amps
    Locked Rotor Amps38 amps
    Rated Load Amps8.1 amps
    Main Winding Resistance1.65 Ω @ 25 ºC
    Start Winding Resistance4.9 Ω @ 25 ºC
  • Start Capacitor100690
    Run Capacitor102084
    Relay100478
    Overload111016
  • cubigel_d15
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    45Capacity (w)11161518198225123105376244855271
    Input (w)790906101811261230133114281521
    Current (Amps)4.384.895.385.866.336.777.27.62
    50Capacity (w)9481312174022322789341040954844
    Input (w)770901102911521272138815011609
    Current (Amps)4.294.875.435.986.517.037.538.01
    55Capacity (w)7791106149719742473305637044417
    Input (w)750897104011791314144615741698
    Current (Amps)4.24.855.486.16.77.297.858.41

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -25-20-15-10-50510
    45Capacity (w)11161518198225123105376244855271
    Input (w)790906101811261230133114281521
    Current (Amps)4.384.895.385.866.336.777.27.62
    50Capacity (w)9481312174022322789341040954844
    Input (w)770901102911521272138815011609
    Current (Amps)4.294.875.435.986.517.037.538.01
    55Capacity (w)7791106149719742473305637044417
    Input (w)750897104011791314144615741698
    Current (Amps)4.24.855.486.16.77.297.858.41

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
