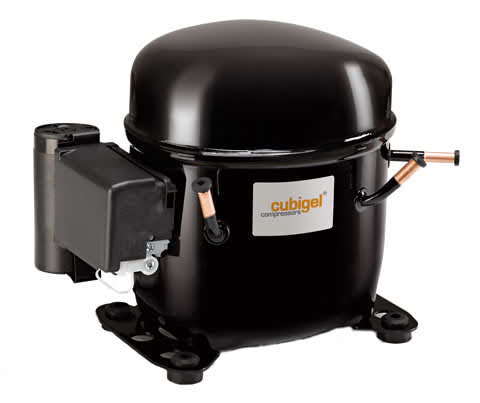

Cubigel Compressor R404A LBP 1/2 HP 18.0cc High Efficiency - MPT18LA

Cubigel Compressor R404A LBP 1/2 HP 18.0cc High Efficiency

Part Number: MPT18LA

Cubigel Compressor R404A LBP 1/2 HP 18.0cc High Efficiency

Part Number: MPT18LA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/2 hp
    Displacement18 cm³
    FanFan Cooled
    Suction Line Connection8.1 mm
    Charge Line Connection6.1 mm
    Discharge Line Connection6.5 mm
    Connection Typestub tube
    Weight12.8 kg
    Oil Charge400 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current5.9 amps
    Locked Rotor Amps26 amps
    Rated Load Amps3.34 amps
    Main Winding Resistance5.9 Ω @ 25 ºC
    Start Winding Resistance9.48 Ω @ 25 ºC
  • Start Capacitor102665
    Run Capacitor102654
    Relay405151
    Overload102200
  • cubigel_d11
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)4015547409581041121114971815
    Input (w)422491566644672728815908
    Current (Amps)2.052.352.673.023.143.43.814.26
    50Capacity (w)3815287099221003117014501764
    Input (w)427501580664694752845943
    Current (Amps)2.072.392.733.113.243.513.964.43
    55Capacity (w)362504678887965112814041712
    Input (w)431511595684715777875978
    Current (Amps)2.092.432.83.23.343.634.14.61

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)4015547409581041121114971815
    Input (w)422491566644672728815908
    Current (Amps)2.052.352.673.023.143.43.814.26
    50Capacity (w)3815287099221003117014501764
    Input (w)427501580664694752845943
    Current (Amps)2.072.392.733.113.243.513.964.43
    55Capacity (w)362504678887965112814041712
    Input (w)431511595684715777875978
    Current (Amps)2.092.432.83.23.343.634.14.61

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
