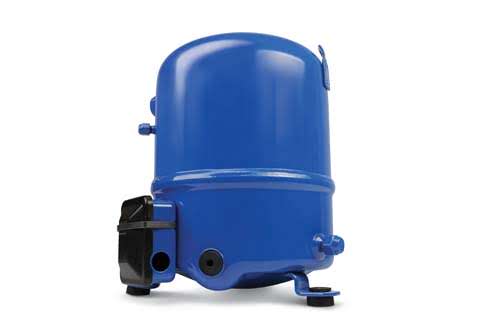

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock - MTZ444VI

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ444VI

Maneurop Compressor 3PH Multi Refrigerant POE Oil Rotalock

Part Number: MTZ444VI
Danfoss

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Maneurop reciprocating compressors from Danfoss Commercial Compressors are specially designed for applications with a wide range of operating conditions. All components are of high quality and precision in order to assure a long product life. Maneurop MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.

    MTZ compressors can be used in new installations and also to replace Maneurop MT/MTE compressors in existing installations. The old MT series compressors were charged with mineral oil and could only be used with R22, while the new replacement MTZ series compressors are charged with polyolester oil and can be used with multiple refrigerants - R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A.

    MTZ compressors have a large internal free volume that protects against the risk of liquid hammering when liquid refrigerant enters the compressor. The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation.

    MTZ compressors are fully suction gas cooled. This means that no additional compressor cooling is required and allows the compressors to be insulated with acoustic jackets, to obtain lower sound levels, without the risk of compressor overheating. All compressors are available in VE version (oil equalisation + oil sight glass).

    Note: Rotalock service valves & crankcase heaters are not supplied with compressor & should be purchased separately if required.



  • General Specifications
    Nominal HP3.75 HP
    Displacement76.22 cm³/r
    Number of Cylinders2
    Suction Line Connection 11-3/4"-12UNF x 1-1/8" ODF
    Discharge Line Connection 11-1/4"-12UNF x 3/4" ODF
    Weight37 kg
    Oil Charge1.8 L
    Oil TypePOE

    1. Service valves are not supplied with compressors & should be purchased separately if required

    Electrical Specifications
    Voltage380-400V / 3 / 50Hz
    Motor Type3PH
    Max Continuous Current9.5 amps
    Locked Rotor Amps48.5 amps
    Crankcase Heater 2PTC Internal heater 200-600 volts 35 watts
    Line to Line Resistance3.22 OHMS (+/- 7% @ 20^C)

    2. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC12B240V
    Crankcase Heater120Z0459
    Discharge Service Gasket0200028025PK
    Discharge Service ValveR052FB4DS
    Electronic OverloadGMP223P22A
    Model NumberMTZ444VI
    Suction Service Gasket0200028035PK
    Suction Service ValveR053FC2DS
    Thermal OverloadMT323K10
  • danfoss_manuerope_mtz_2
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)336644675791735791841128413663
    Input (w)2570286531463404363138183954
    Current (Amps)5.776.076.366.646.97.137.32
    50Capacity (w)3856503764388075995912096
    Input (w)293832533551382340604251
    Current (Amps)6.146.816.817.127.417.67
    55Capacity (w)3315431455116921855310409
    Input (w)296333193663398642794533
    Current (Amps)6.176.566.947.327.698.03

    Note:

    20°C Return Gas, no Sub-Cooling
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -20-15-10-50510
    45Capacity (w)336644675791735791841128413663
    Input (w)2570286531463404363138183954
    Current (Amps)5.776.076.366.646.97.137.32
    50Capacity (w)3856503764388075995912096
    Input (w)293832533551382340604251
    Current (Amps)6.146.816.817.127.417.67
    55Capacity (w)3315431455116921855310409
    Input (w)296333193663398642794533
    Current (Amps)6.176.566.947.327.698.03

    Note:

    20°C Return Gas, no Sub-Cooling
    R134A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-5051015
    45Capacity (w)22773127416154026870858410562
    Input (w)1619179619652118224923532423
    Current (Amps)4.95.15.25.35.45.55.6
    50Capacity (w)2033280737524889624078219651
    Input (w)1637183120212198235724922595
    Current (Amps)4.945.085.375.375.515.655.78
    55Capacity (w)1837252533714396562170628735
    Input (w)1640185420662270245926272766
    Current (Amps)4.95.15.25.45.65.85.9

    Note:

    20°C Return Gas, no Sub-Cooling
    R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-5057.21015
    45Capacity (w)55127016879210868119241326716015
    Input (w)2709296531773333337334233432
    Current (Amps)6.026.296.536.716.766.836.86
    50Capacity (w)50766483814910101110951236114954
    Input (w)2843313533883590365237303794
    Current (Amps)6.166.47777.087.187.28
    55Capacity (w)4631592074569262101861136113777
    Input (w)2923325735573810389640054130
    Current (Amps)6.266.636.977.287.397.547.71

    Note:

    20°C Return Gas, no Sub-Cooling
