Copeland Scroll Compressor 1PH POE Oil Stub Tube - ZR36K3EPFJ522

Copeland Scroll Compressor 1PH POE Oil Stub Tube

Part Number: ZR36K3EPFJ522

Copeland Scroll Compressor 1PH POE Oil Stub Tube

Part Number: ZR36K3EPFJ522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • COPELAND ZR SCROLL COMPRESSORS

    ZR Copeland Scroll compressors for comfort and process/precision cooling applications. Applied in the air conditioning and comfort industry for water chillers, rooftops and close control unit applications, scroll compressors are now the most used compression technology replacing reciprocating and screw compressors due to its undeniable superiority.

    Features and Benefits:

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Wide scroll line-up for R407C and R134a

    • Low TEWI (Total Equivalent Warming Impact)

    • Low sound and vibration level

    • Low oil circulation rate

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

  • General Specifications
    Nominal HP3 HP
    Displacement49.49 m³/Hr
    Suction Line Connection3/4"
    Discharge Line Connection1/2"
    Connection Typestub tube
    Weight30 kg
    Oil Charge1.12 L
    Oil TypePOE
    Oil Sight GlassNo
    ElectricsIncludes Run Capacitor (PSC)
    Electrical Specifications
    Motor TypePSC
    Max Continuous Current23 amps
    Locked Rotor Amps82 amps
    Rated Load Amps16.4 amps
    Crankcase Heater 1240V 70W (CH-280) Wrap Around
    Main Winding Resistance0.89 OHMS (+/- 7%)
    Start Winding Resistance1.84 OHMS (+/- 7%)

    1. Not supplied

  • Crankcase Heater018005700

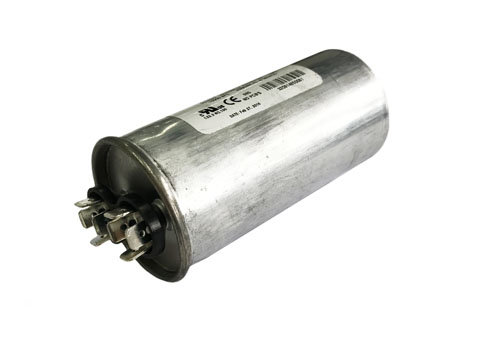

    Run Capacitor014005440
  • copeland_ZR_01

    Units Dimensions (mm)
    A245
    B236
    C243
    D166
    E284
    F381
    G406
  • copeland_PSC
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012.8
    45Capacity (w)49605950746096401063011700
    Input (w)226022502230219321822172
    Current (Amps)11.149601110.810.810.7
    50Capacity (w)46605630711592301020011230
    Input (w)251525002480244424342423
    Current (Amps)12.212.1121211.911.8
    55Capacity (w)524566908750968010690
    Input (w)28062783275027302720
    Current (Amps)13.513.413.213.113

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
