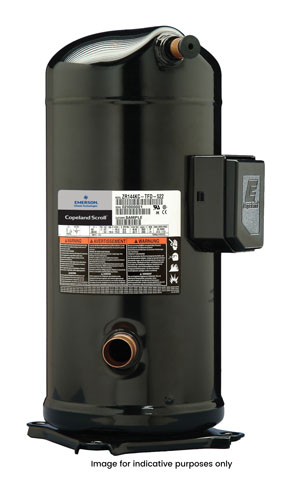

Copeland Scroll Compressor 1PH POE Oil Stub Tube - ZR47K3EPFJ522

Copeland Scroll Compressor 1PH POE Oil Stub Tube

Part Number: ZR47K3EPFJ522

Copeland Scroll Compressor 1PH POE Oil Stub Tube

Part Number: ZR47K3EPFJ522
Copeland

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • ZR47K3E-PFJ-522 COPELAND ZR SCROLL COMPRESSORS

    ZR Copeland Scroll compressors for comfort and process/precision cooling applications. Applied in the air conditioning and comfort industry for water chillers, rooftops and close control unit applications, scroll compressors are now the most used compression technology replacing reciprocating and screw compressors due to its undeniable superiority.

    Features and Benefits:

    • Copeland Scroll axial and radial compliance for superior reliability and efficiency

    • Wide scroll line-up for R407C and R134a

    • Low TEWI (Total Equivalent Warming Impact)

    • Low sound and vibration level

    • Low oil circulation rate

    • Copeland qualified tandem and trio configurations for superior seasonal efficiency

  • General Specifications
    Nominal HP4 HP
    Displacement63.32 cm³/r
    Suction Line Connection7/8"
    Discharge Line Connection1/2"
    Connection Typestub tube
    Weight32 kg
    Oil Charge1.12 L
    Oil TypePOE
    Oil Sight GlassNo
    ElectricsNot Included
    Electrical Specifications
    Motor TypePSC
    Max Continuous Current27 amps
    Locked Rotor Amps114 amps
    Rated Load Amps19.3 amps
    Crankcase Heater 1240V 70W (CH-280) Wrap Around
    Main Winding Resistance0.59 OHMS (+/- 7%)
    Start Winding Resistance1.67 OHMS (+/- 7%)

    1. Not supplied

  • Crankcase Heater018005700
    Run Capacitor014006418
  • copeland_ZR_01

    Units Dimensions (mm)
    A245
    B236
    C243
    D166
    E313
    F411
    G436
  • copeland_PSC
  • R22
    Cond Temp (°C)Evaporating Temperature (°C)
    -10-507.21012.8
    45Capacity (w)665082009900127001405015200
    Input (w)278027702770280028202850
    Current (Amps)1466501414.114.214.3
    50Capacity (w)625077009350120501335014500
    Input (w)314031203110312031403160
    Current (Amps)15.415.415.415.415.515.6
    55Capacity (w)72008800114001265013750
    Input (w)35403520351035203530
    Current (Amps)17.117171717.1

    Note:

    4.4 Deg Return Gas, no Sub-Cooling, 35 Deg Ambient
    Supplied with: Internal Motor Protection, Rubber Mounting Kit
    IMPORTANT – WARNING : Read Installation Notes Before Running Any Scroll Compressors
