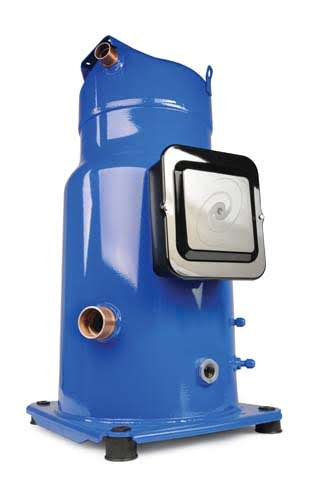

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Stub - SZ1484VAI

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Stub

Part Number: SZ1484VAI

Danfoss Scroll Compressor 3PH Multi Refrigerant POE Stub

Part Number: SZ1484VAI

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Danfoss is a worldwide manufacturer of compressors and condensing units for refrigeration and HVAC applications. Danfoss have a wide range of high quality and innovative products that help your company to find the best possible energy efficient solution that respects the environment and reduces total life cycle costs.

    Danfoss have 40 years of experience within the development of hermetic compressors which places them amongst the global leaders in the industry. Today Danfoss operate from engineering and manufacturing facilities spanning across three continents.

    This SZ148-4VAI model is supplied with internal overload motor protection to prevent excessive current draw, overheating & phase loss or incorrect motor rotation. The cutout current is the MCC value & can be found in data sheets. The protector is located in the star point of the motor & will cut out all three phases when activated & will automatically reset. Although not compulsory it is advisable to fit additional external overload protection for alarm or manual reset.

    The SZ range of compressors benefit from the improved design features below to achieve the highest efficiency:

    • Gas circulation, motor cooling and oil behaviour are improved on light commercial platform models by a new patented motor cap design.

    • Part protection and assembly reduces internal leaks and increases life durability.

    • Improved part isolation reduces greatly acoustic levels.

    • Gas intake design induces higher resistance to liquid slugging.

    • Multi-refrigerant (R134a, R404A, R407C, R507A) optimized scroll profile and charged with POE oil.

    Note: Crankcase heater is not supplied with compressor & should be purchased separately if required.


  • General Specifications
    Swept Volume199 cm³/rev
    Suction Line ConnectionStub Tube 1-3/8" ODF
    Discharge Line ConnectionStub Tube 7/8" ODF
    Weight88 kg
    Oil Charge3.6 L
    Oil Type160SZ P.O.E. Oil
    Electrical Specifications
    Voltage380-400V / 3 / 50Hz
    Motor Type3PH
    Max Continuous Current32 amps
    Locked Rotor Amps145
    Rated Load Amps22.9 amps
    Max Operating Amps29 amps
    Crankcase Heater 1230 volts 65 watts
    Line to Line Resistance0.94 OHMS (+/- 7% @ 25ºC)

    1. Crankcase Heaters are not supplied with compressors & should be purchased separately if required

  • ContactorMC40A240V
    Crankcase Heater7773107
    Electronic OverloadGMP403P40A
    Thermal OverloadMT323K32
  • danfoss_manuerope_scroll_b

    Units Dimensions (mm)
  • R407C
    Cond Temp (°C)Evaporating Temperature (°C)
    45Capacity (w)19339241442975136258394324376352364
    Input (w)8797883188548871887888878906
    Current (Amps)16.3216.3616.3916.416.416.416.4
    50Capacity (w)18085226452796734150371694129249491
    Input (w)9870990499249935993899419947
    Current (Amps)17.6217.6817.7117.7117.7117.717.68
    55Capacity (w)210912611331956348123871946502
    Input (w)111241114211147111471114411137
    Current (Amps)19.2219.2619.2619.2619.2519.21


    11.1k Superheat, 8.3K Subcooling, 35°C Ambient
