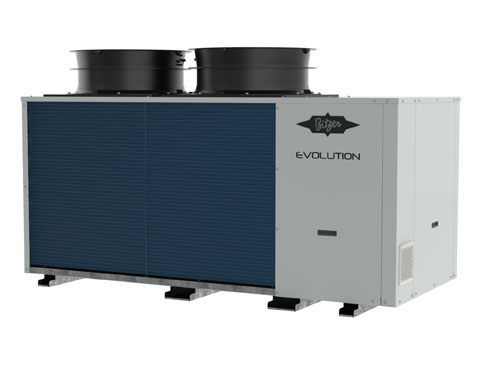

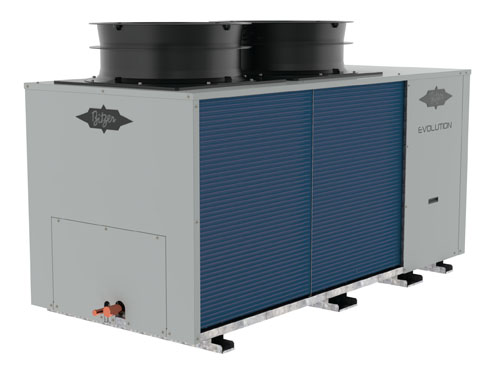

Bitzer Evolution Basic Condensing Unit 4FE28Y-EVO8 - 4FE28YEVO8BA

Bitzer Evolution Basic Condensing Unit 4FE28Y-EVO8

Part Number: 4FE28YEVO8BA

Bitzer Evolution Basic Condensing Unit 4FE28Y-EVO8

Part Number: 4FE28YEVO8BA
Bitzer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Bitzer Evolution EVO8 - Air Cooled Condensing Units

    The Bitzer Evolution EVO7 & EVO8 unit series incorporates the latest compressor developments including Bitzer ECOLINE compressors, VARISTEP capacity regulation via CRII capacity control or VARIPACK Frequency Inverter coupled with world class fan technology to produce an extremely efficient unit.

    EVOLUTION EVO8 Outdoor Air Cooled Condensing Units are available in Basic, Advanced & Premium seriesmodels.

    Basic Series – Standard Features:

    • 16 unit models available

    • BITZER ECOLINE compressor

    • Epoxy fin & copper tube condenser

    • Centrifugal Internal reservoir oil separator

    • 45L Liquid receiver c/w sight glass

    • Demountable liquid line drier

    • Liquid line sight glass

    • Liquid line ball valve

    • 3 Phase EC condenser fans

    • Vertical airflow design

    • Fan speed control

    • Galvanised steel base

    • High quality powder coated panel set

    • Mechanical dual pressure control

    • DPII oil pressure switch

    • Oil level monitoring and control

    • Pre-wired electrical panel and componentry

  • Condensing Unit Specifications
    Weight1327 Kg
    Liquid Line Connection1-1/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A36 Kg
    Receiver Capacity R134A43 Kg
    Compressor
    Max Continuous Current52.8 Amps
    Voltage380-420YY / 3 / 50Hz (P.W.S.)
    Motor Type2
    Crankcase Heater240V / 1 / 50Hz (140 watts)
    Fan Motors
    Total FLA8.8 Amps
    Quantity2
    Diameter800 mm
    Voltage415V / 3 / 50Hz (EC Fans)
  • Bitzer_EVO7_EVO8

    Units Dimensions (mm)
    A2945
    B1400
    C1731
    D2165
    E1150
    F1262
    G1360
    H800
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-5
    35258363246440037486325831069121
    38245083083738052462335544565741
    40236142974436720446255352563477
    43222622809034708421975063160068

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-5
    35258363246440037486325831069121
    38245083083738052462335544565741
    40236142974436720446255352563477
    43222622809034708421975063160068

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-50510
    35126181683921845277573468342712519166234674039
    38120361615521009267203339941136500066006471348
    40116451569620449260273254040083487315854169553
    43110551500419604249823124838500468145625266858

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    Indicates additional cooling required, contact Airefrig Australia for further information
