Bitzer Evolution Basic Condensing Unit 6GE34Y-EVO8 - 6GE34YEVO8BA

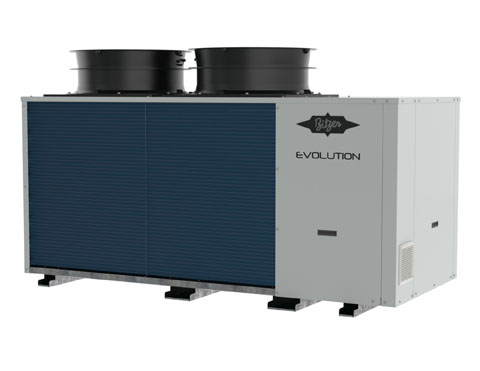

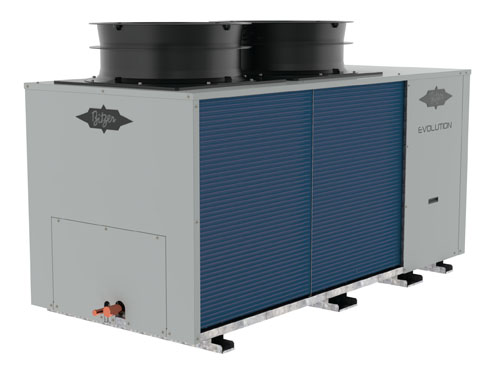

Bitzer Evolution Basic Condensing Unit 6GE34Y-EVO8

Part Number: 6GE34YEVO8BA

Bitzer Evolution Basic Condensing Unit 6GE34Y-EVO8

Part Number: 6GE34YEVO8BA
Bitzer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Bitzer Evolution EVO8 - Air Cooled Condensing Units

    The Bitzer Evolution EVO7 & EVO8 unit series incorporates the latest compressor developments including Bitzer ECOLINE compressors, VARISTEP capacity regulation via CRII capacity control or VARIPACK Frequency Inverter coupled with world class fan technology to produce an extremely efficient unit.

    EVOLUTION EVO8 Outdoor Air Cooled Condensing Units are available in Basic, Advanced & Premium seriesmodels.

    Basic Series – Standard Features:

    • 16 unit models available

    • BITZER ECOLINE compressor

    • Epoxy fin & copper tube condenser

    • Centrifugal Internal reservoir oil separator

    • 45L Liquid receiver c/w sight glass

    • Demountable liquid line drier

    • Liquid line sight glass

    • Liquid line ball valve

    • 3 Phase EC condenser fans

    • Vertical airflow design

    • Fan speed control

    • Galvanised steel base

    • High quality powder coated panel set

    • Mechanical dual pressure control

    • DPII oil pressure switch

    • Oil level monitoring and control

    • Pre-wired electrical panel and componentry

  • Condensing Unit Specifications
    Weight1353 Kg
    Liquid Line Connection1-1/8 "
    Suction Line Connection2-1/8 "
    Receiver Capacity R404A36 Kg
    Receiver Capacity R134A43 Kg
    Compressor
    Max Continuous Current65.5 Amps
    Voltage380-420YY / 3 / 50Hz (P.W.S.)
    Motor Type2
    Crankcase Heater240V / 1 / 50Hz (140 watts)
    Fan Motors
    Total FLA8.8 Amps
    Quantity2
    Diameter800 mm
    Voltage415V / 3 / 50Hz (EC Fans)
  • Bitzer_EVO7_EVO8

    Units Dimensions (mm)
    A2945
    B1400
    C1731
    D2165
    E1150
    F1262
    G1360
    H800
  • R404A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-5
    35320964003349073592887073283440
    38304973805646654563656724979344
    40294223673045032544076491676603
    43277953472342581514516139872471

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    R507
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-5
    35320964003349073592887073283440
    38304973805646654563656724979344
    40294223673045032544076491676603
    43277953472342581514516139872471

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    R134A
    Ambient (°C)Refrigeration Capacity (w)
    Evaporating Temperature (°C)
    -30-25-20-15-10-50510
    35148372000326106332724160551180620477422987722
    38140181906824987319043992549131595767128984273
    40134701844324239309903880447765579296933081977
    43126461750223115296183712245715554606639678536

    Note:

    Performance data, based on 20°C suction gas temperature; Inherent liquid subcooling; 50Hz
    Receiver Capacities based on 80% full @ 25°C
    Indicates additional cooling required, contact Airefrig Australia for further information
