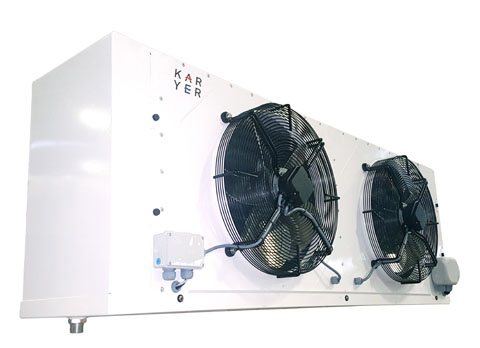

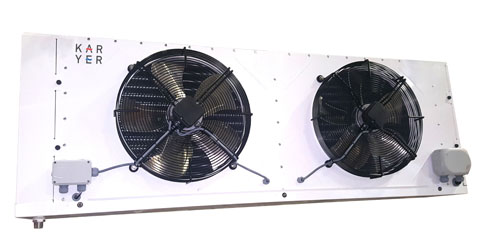

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 2 x 500mm Fan - EAL116E2500EVD

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 2 x 500mm Fan

Part Number: EAL116E2500EVD

Karyer Low Temp EVD Evap 7.0mm Fin Spacing - 2 x 500mm Fan

Part Number: EAL116E2500EVD
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EA Series Evaporators

    The Karyer EA series evaporators are specially designed for a wide variety of small to large commercial refrigeration applications such as coolrooms and freezer rooms.

    The EA series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The three phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability.
    These fan motors have been selected in 500mm diameters specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EA series standard features:

    • Factory fitted with EVD-ice Z valves including Ultra Cap
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • White powder coated aluminium case panels
    • White powder coated mounting feet
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Access doors aluminium powder coated on both ends - hinged and removable
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire defrost heater safety termination thermostats (5.0amp) - low temp models only
    • High quality three phase 500mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection boxes

  • Evaporator Specifications
    Weight Unpacked86 kg
    Weight Packed116 kg
    Suction Connection1-3/8 "
    Liquid Connection3/4 "
    Tube Volume14 dm³
    Fin Spacing7 mm
    Air Flow
    Air Flow15749 m³/h
    Air Throw - STD Fan22.2 m
    Fan Motors
    Voltage400 / 3 / 50 Hz
    Quantity2
    Diameter500 mm
    Total Watts1680 watts
    Total Amps2.9 amps
    Defrost Heaters
    Voltage230 / 1 / 50 Hz
    Total Watts10175 watts
    Total Amps44 amps
  • ebm Fan MotorsS4D500-AE03-01
    Drain PanD140445
    Side Panel with Two Hinges - HeaderD140426
    Side Panel with Two Hinges - Opposite SideD140427
    EVD-ice Valves - Valve CartridgeE2VATT24Z0
    EVD-ice Valves - Driver ModuleEVDM011S60
    EVD-ice Valves - Ultracap Resin ModuleEVDMU00R10
    EVD-ice Valves - Replacement Motor / StatorE2VSTA0330
    EVD-ice Valves - Pressure TransmitterSPKT0013P3
    Defrost Safety Termination ThermostatD92041
    Coil Heater SetD90059
    Pan Heater SetD90059
  • Karyer_EA-D11

    Units Dimensions (mm)
    A2007
    B357
    C580 ±5
    D683
    E691
    F1735
    F1867.5
    G395
    DrainR1 1/4" Thread (32mm ID Ø)
  • R404A
    Capacity (w) @ 6 KTD
    SST (°C)
    -35-30-25-24-20-15-10-5
    826210776115081163412150121681224614526

    Note:

    Capacities bases on Fin Series 7
    R449A
    Capacity (w) @ 6 KTD
    SST (°C)
    -35-30-25-24-20-15-10-5
    776410128108181093811424114361151413656

    Note:

    Capacities bases on Fin Series 7
    R448A
    Capacity (w) @ 6 KTD
    SST (°C)
    -35-30-25-24-20-15-10-5
    784810236109321105211544115621163413800

    Note:

    Capacities bases on Fin Series 7
    R507
    Capacity (w) @ 6 KTD
    SST (°C)
    -35-30-25-24-20-15-10-5
    801610452111661129211784118081188014094

    Note:

    Capacities bases on Fin Series 7
