Bitzer Mini-Rack 2 x 4FES5Y 3PH

Part Number: MINI24FES5

Bitzer Mini-Rack 2 x 4FES5Y 3PH

Part Number: MINI24FES5
Bitzer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • SEMI HERMETIC RECIPROCATING COMPRESSORS - MINI-RACK

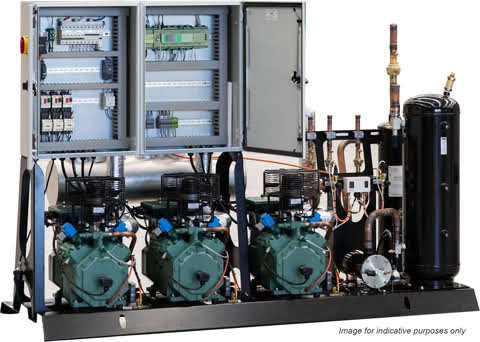

    BITZER's multiple compressor mini racks offer high flexibility and a variety of capacity range on a compact platform. They are designed and manufactured to offer a reduced installation time and minimum maintenance time made possible through easy service access and isolation points for all major components .

    STANDARD FEATURES

    • Two, three or four compressor racks
    • Suction gas header with liquid floodback protection
    • Suction demountable filters
    • Fully insulated suction lines
    • Vertical liquid receiver
    • Demountable liquid line drier, sight glass assembly
    • High efficient oil Separator with oil level sight glass
    • Oil filter assembly
    • Non adjustable high pressure safety switch per compressor
    • Oil return sight glass
    • Anti vibration mounting pads
    • Manufactured under ISO 9001 quality control
    • Fully wired switch board and controller

    OPTIONS

    • CRII capacity control
    • CM-RC-01 Module
    • Compressor head fan
    • Adjustable compressor safety switch
  • BrandBitzer
    Crankcase Heater240W
    Discharge Line Connection7/8"
    Displacement m3/h36.1
    Liquid Line Connection2 x 7/8"
    Max. Operating Current21.6 amps
    Max. Power Consumption11.60kW
    Motor Connection Voltage380-420VY/3/50Hz
    Number of Compressors2
    Receiver Inlet Connection1-1/8"
    Suction Line Connection2 x 1-3/8"
    Weight370kg

    Notes:

    USE E10103 FOR ELECTRICAL

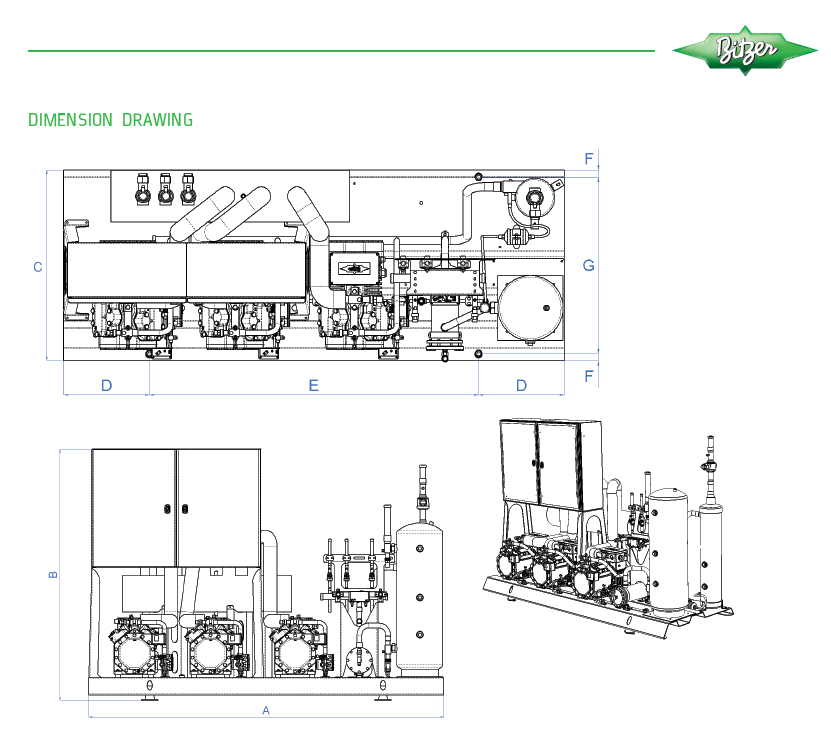

  • A: 2100mm B: 1488mm C: 800mm D: 360mm E: 1380mm F: 30mm G: 740mm
